Ceph Stretch Clusters Part 1: Key Concepts

Daniel Parkes, Anthony D'Atri (IBM)

Ceph Stretch Clusters Part 1: Key Concepts

Introduction

When considering replication, disaster recovery, and backup + restore, we choose from multiple strategies with varying SLAs for data and application recovery. Key factors include the Recovery Time Objective (RTO) and Recovery Point Objective (RPO). Synchronous replication provides the lowest RPO, which means zero data loss. Ceph can implement synchronous replication among sites by stretching the Ceph cluster across multiple data centers.

Asynchronous replication inherently implies a non-zero RPO. With Ceph, async multisite replication involves replicating data to another Ceph cluster. Each Ceph storage access method (object, block, and file) has its own asynchronous replication method implemented at the service level.

Asynchronous Replication: Replication occurs at the service level (RBD, CephFS, or RGW), typically across fully independent Ceph clusters.

Synchronous Replication (“Stretch Cluster”): Replication is performed at the RADOS (cluster) layer, so writes must be completed in every site before an acknowledgment is sent to clients.

Both methods have distinct advantages and disadvantages, as well as different performance profiles and recovery considerations. Before discussing Ceph stretch clusters in detail, here is an overview of these replication modes.

Replication Options in Ceph

Asynchronous Replication

Asynchronous replication is driven at the service layer. Each site provisions a complete, standalone Ceph cluster and maintains independent copies of the data.

  • RGW Multisite: Each site deploys one or more independent RGW zones. Changes are propagated asynchronously between sites using the RGW multisite replication framework. This replication is not journal-based. Instead, it relies on log-based replication, where each RGW tracks changes through a log of operations (sync logs), and these logs are replayed at peer sites to replicate data.

  • RBD Mirroring: Block data is mirrored either using a journal-based approach (as with Openstack) or a snapshot-based approach (as with ODF/OCP), depending on your requirements for performance, crash consistency, and scheduling.

  • CephFS Snapshot Mirroring (in active development): Uses snapshots to replicate file data at configurable intervals.

Asynchronous replication is well-suited for architectures with significant network latency between locations. This approach allows applications to continue operating without waiting for remote writes to complete. However, it is important to note that this strategy inherently informs a non-zero Recovery Point Objective (RPO), meaning there will be some delay before remote sites are consistent with the primary. As a result, a site failure could lead to loss of recently written data that is still in flight.

To explore Ceph's asynchronous replication, please check out our prior blog posts: Object storage Multisite Replication.

Synchronous Replication: Stretch Cluster

A stretch cluster is a single Ceph cluster deployed across multiple data centers or availability zones. Write operations return to clients only once persisted at all sites, or enough sites to meet each logical pool's replication schema requirement. This provides:

  • RPO = 0: No data loss if one site fails since every client write is synchronously replicated and will be replayed when a failed site comes back online.

  • Single cluster management: No special client-side replication configuration is needed: regular Ceph tools and workflows are applied.

A stretch cluster has strict networking requirements: a maximum 10ms RTT between sites. Because writes to OSDs must travel between sites before an acknowledgment is returned to the client, latency is critical. Network instability, insufficient bandwidth, and latency spikes can degrade performance and risk data integrity.

Ceph Stretch clusters

Introduction

Ceph Stretch Clusters provide benefits that make them a good option for critical applications that require maximum uptime and resilience:

  • Fault Tolerance: a stretch cluster will handle the failure of an entire site transparently without impacting client operations. It can sustain a double site failure without data loss.

  • Strong Consistency, In a three-site setup, data uploaded online immediately becomes visible and accessible to all AZs/sites. Strong consistency enables clients at each site to always see the latest data.

  • Simple setup and day two operations: One of the best features of stretch clusters is straightforward operation. They are like any standard, single-site cluster in most ways. Also, no manual intervention is required to recover from a site failure, making them easy to manage and deploy.

  • Stretch clusters can be complemented with multisite asynchronous replication for cross-region data replication.

It is however essential to consider the caveats of Ceph stretch clusters:

  • Networking is crucial: Inter-site networking shortcomings including flapping, latency spikes and insufficient bandwidth impact performance and data integrity.

  • Performance: Write operation latency is increased by the RTT of the two most distant sites. When deploying across three sites pool data protection strategy should be configured for replication with a size value 6, which means write amplification of six OSD operations per client write. We must set workload expectations accordingly. For example, a high IOPS, low-latency OLTP database workload likely will struggle if storing data a stretch cluster.

  • Replica 6 (or Replica 4 two-site stretch) is recommended for reliability: We keep six (or four) copies of data. Erasure Coding is not at present an option at the moment due to performance impact, intersite network demands, and the nuances of ensuring simultaneous strong consistency and high availability. This in turn means that the total available usable capacity for a given amount of raw underlying storage must be carefully considered relative to a conventional single-site cluster.

  • Single Cluster across all sites: If data is damaged due to a software or user issue including deletion on the single stretch cluster, the data seen by all sites will be affected

Networking: The Foundation of a Stretch Cluster

A stretch cluster depends on robust networking to operate optimally. A suboptimal network configuration will impact performance and data integrity.

  • Equal Latency Across Sites: The sites are connected through a highly available L2 or L3 network infrastructure, where the latency among the data availability zones/sites is similar. The RTT is ideally less than 10ms. Inconsistent network latency (jitter) will degrade cluster performance.

  • Reliable L2/L3 network with minimal latency spikes: Inter-site path diversity with redundancy: full mesh or redundant transit.

  • Sufficient Bandwidth: The network should have adequate bandwidth to handle replication, client request, and recovery traffic. Network bandwidth must scale with cluster growth: as we add nodes, we must also increase inter-site network throughput to maintain performance.

  • Networking QoS is beneficial: Without QoS, a noisy neighbor sending or receiving substantial inter-site traffic can degrade cluster stability.

  • Global Load Balancer: Object storage that uses S3 RESTful endpoints needs a GLB to redirect client requests in case of a site failure.

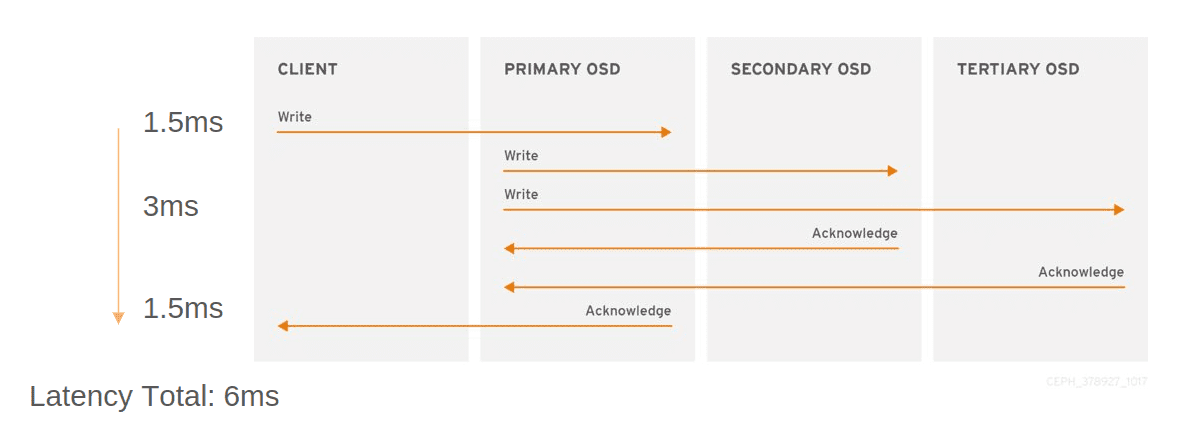

  • Performance: Each client write will experience at least the latency the of the highest RTT between sites. The following diagram shows operation latency for a three-site stretch cluster with a 1.5ms RTT between sites, with a client and primary OSD at different sites:

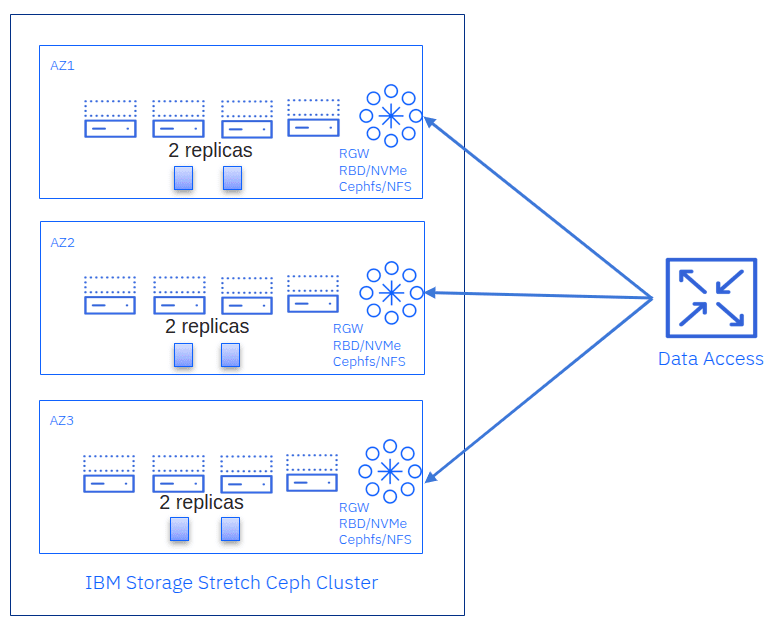

Three Site Stretch Cluster

Each data center (or availability zone) houses a share of the OSDs in a three-site stretch cluster. Two data replicas are stored in each zone, so the CRUSH pool's size parameter is 6. This allows the cluster to serve client operations with zero data unavailability or loss when an entire site goes offline. Some highlights are below:

  • No Tiebreaker: Because there are three full data sites (OSDs in all sites), the Monitors can form quorum with any two sites able to reach each other.

  • Enhanced Resilience: Survives a complete site failure plus one additional OSD or node failure at surviving sites.

  • Network Requirements: L3 routing is recommended, and at most 10ms RTT is required among the three sites.

To delve deeply into Ceph 3-site stretch configurations, check out this excellent Cephalocon video from Kamoltat Sirivadhna.

Two-Site Stretch Cluster with Tie-Breaker

For deployments where only two data centers have low-latency connectivity, place OSDs in those two data centers with the third site elsewhere hosting a tie-breaker Monitor. This may even be a VM at a cloud provider. This ensures that the cluster maintains a quorum when a single site fails.

  • Two low latency main sites: each hosting half of the total OSD capacity.

  • One tie-breaker: site hosting a a tie-breaker Monitor.

  • Replicas: Pool data production strategy replication with ``size=4`, which means two replicas per data center.

  • Latency: At most 10 ms RTT between the main, OSD-containing data centers. The tie-breaker site can tolerate much higher latency (e.g., 100 ms RTT).

  • Improved netsplit handling: Prevents a split-brain scenario

  • SSD OSDs required: HDD OSDs are not supported.

Conclusion

Ceph supports both asynchronous and synchronous replication strategies, each with specific trade-offs among recovery objectives, operational complexity, and networking demands. Asynchronous replication (RBD Mirroring, RGW Multisite, and CephFS Snapshot Mirroring) provides flexibility and easy geo-deployment but carries a non-zero RPO. In contrast, a stretch cluster delivers RPO=0 by synchronously writing to multiple data centers, ensuring no data loss but requiring robust, low-latency inter-site connectivity and increased replication overhead including higher operation latency.

Whether you choose to deploy a three-site or two-site with a tie-breaker design, a stretch cluster can seamlessly handle the loss of an entire data center with minimal operational intervention. However, it is crucial to consider the stringent networking requirements (both latency and bandwidth) and the higher capacity overhead of replication with size=4. For critical applications where continuous availability and zero RPO are top priorities, the additional planning and resources for a stretch cluster may be well worth the investment. If a modest but nonzero RPO is acceptable, say if one data center is intended only for archival or as a reduced-performance disaster recovery site, asynchronous replication may be appealing in that capacity-efficient erasure coding may be used at both sites.

In our next post (part 2 of this series), we will explore two-site stretch clusters with a tie-breaker. We’ll provide practical steps for setting up Ceph across multiple data centers, discussing essential network and hardware considerations. Additionally, we will conduct a hands-on deployment, demonstrating how to automate the bootstrap of the cluster using a spec file. We will also cover how to configure CRUSH rules and enable stretch mode.

The authors would like to thank IBM for supporting the community with our time to create these posts.
