Enhanced Visibility into Ceph Object Multisite Replication with the New HTTP Sync Status Headers

Daniel Parkes, Anthony D'Atri (IBM)

Introduction

In a world where data must be quickly accessed and protected across multiple geographical regions, multi-site replication is a critical feature of object storage. Whether running global applications or maintaining a robust disaster recovery plan, replicating objects between different regions is essential for redundancy and business continuity.

Ceph Object storage multi-site replication is asynchronous and log-based. The nature of async replication can present challenges validating where your data currently resides or confirming that it has fully replicated to all remote zones. This is not acceptable for certain applications and use cases that require close to strong consistency on write, and all the objects to be replicated and available in all sites before they are made accessible to the application or user.

As a side note, complete consistency on write can be provided using a Ceph Stretch Cluster solution that provides synchronous replication, but this has its limitations for a geo-dispersed solution as latency is a key factor for stretch clusters. If you need geo-replication you thus often will implement multisite async replication for object storage as your solution.

The Challenge

Application owners often need to know if an object is already available in the destination zone before triggering subsequent actions (e.g., analytics jobs, further data processing, or regulatory archiving). Storage operations teams may want clear insight into how long replication takes, enabling them to alert and diagnose slow or faulty network links. Automation and data pipelines might require a programmatic way to track replication status before proceeding with the next step in a workflow.

Ceph Squid Introduces Replication Headers

To address this visibility gap, Ceph Squid introduces new HTTP response headers that expose exactly where each object is in the replication process:

  • x-amz-replication-status
    A quick way to determine if the object is pending replication, in progress, or already fully replicated. The status might show PENDING, COMPLETED, or REPLICA depending on configuration.

  • x-rgw-replicated-from
    Shows the source zone from which the object was initially replicated.

  • x-rgw-replicated-at
    Provides a timestamp indicating when the object was successfully replicated. By comparing this to the object’s Last-Modified header, you get an instant measure of replication latency that is valuable for real-time monitoring or performance tuning.

These headers enable a programmatic and deterministic way to know whether data has propagated to the target zone. It’s vital to note that the primary use case for these new HTTP replication headers is to query the status of objects during ingest to help the application make decisions based on the replication status of the objects. This is not intended for infra teams to check the replication status of all objects by scanning through billions of objects.

Example Use Cases for HTTP Replication Headers

Application Workflows

Developers can integrate these headers into their application logic. After uploading an object, the application can poll the x-amz-replication-status header to ensure the object is fully available in the destination zone before triggering subsequent actions.

Operations Canary Monitoring

An automated job (sometimes called a synthetic test or canary test) can periodically upload and delete an object, checking how long replication takes. If latency breaches a certain threshold, the operations team can be alerted to investigate potential network or configuration issues.

Data Pipelines and Notifications

While polling headers is often the most straightforward approach, you may leverage Ceph S3 bucket notifications for certain replication-related events. Integrating these with a message broker like Kafka can help orchestrate larger, event-driven workflows. Fore more information see the Ceph docs on S3 notifications.

Basic Hands-on Example

I have multi-site replication set up between two Ceph clusters. They are part of a zonegroup named multizg and we have bidirectional full-zone replication configured between zone1 and zone2.

# radosgw-admin sync info
{
    "sources": [
        {
            "id": "all",
            "source": {
                "zone": "zone2",
                "bucket": "*"
            },
            "dest": {
                "zone": "zone1",
                "bucket": "*"
            },
    "dests": [
        {
            "id": "all",
            "source": {
                "zone": "zone1",
                "bucket": "*"
            },
            "dest": {
                "zone": "zone2",
                "bucket": "*"
            },
...

For detailed information about Ceph Object Storage multisite replication, see the blog series that covers this feature in-depth, from architecture to setup and fine-tuning:

multisite part1
multisite part2
multisite part3
multisite part4
multisite part5
multisite part6
multisite part7
multisite part8

A simple way to view these new replication headers is to use s3cmd with the --debug flag, which prints raw HTTP response headers from the Ceph Object Gateway. By filtering for rgw- or x-amz- lines, we can easily spot replication-related information.

Let's check it out. I uploaded an object into zone1:

# s3cmd --host ceph-node-00:8088 put /etc/hosts s3://bucket1/file20
upload: '/etc/hosts' -> 's3://bucket1/file20'  [1 of 1]
 640 of 640   100% in    0s     7.63 KB/s  done

When I check the object's status on the source zone where I uploaded the object, it’s in the PENDING state, indicating the object is still replicating. Eventually, once replication is complete, the status will transition to COMPLETED in the source zone and REPLICA in the destination zone.

# s3cmd --host ceph-node-00:8088 --debug info s3://bucket1/file20 2>&1 | grep -B 2 'rgw-'
             'x-amz-replication-status': 'PENDING',
             'x-amz-request-id': 'tx00000f2948c72a2d2fb8e-0067a5c961-35964-zone1',
             'x-rgw-object-type': 'Normal'},

Now, let’s check on the destination zone endpoint:

# s3cmd --host ceph-node-05:8088 --debug info s3://bucket1/file20 2>&1 | grep -B 2 'rgw-'
             'x-amz-replication-status': 'REPLICA',
             'x-amz-request-id': 'tx00000a98cf7b6a584b95b-0067a5cac9-29779-zone2',
             'x-rgw-object-type': 'Normal',
             'x-rgw-replicated-at': 'Fri, 07 Feb 2025 08:50:07 GMT',
             'x-rgw-replicated-from': 'b6c9ca95-6683-42a5-9dff-ba209039c61b:bucket1:b6c9ca95-6683-42a5-9dff-ba209039c61b.32035.1'},

Here, the relevant headers tell us:

  • x-amz-replication-status: REPLICA
    The object has completed replication and is available in the remote zone(s).
  • x-rgw-replicated-at: 'Fri, 07 Feb 2025 08:50:07 GMT'
    Shows the timestamp when replication was finished.
  • x-rgw-replicated-from: 8f8c3759-aaaf-4e6d-b346-...:bucket1:...
    Identifies the source zone (and bucket) from which the object was replicated.

Let's check that the status of the object in the source site has moved into the COMPLETE state:

# s3cmd --host ceph-node-00:8088 --debug info s3://bucket1/file20 2>&1 | grep x-amz-replication-status
             'x-amz-replication-status': 'COMPLETED',

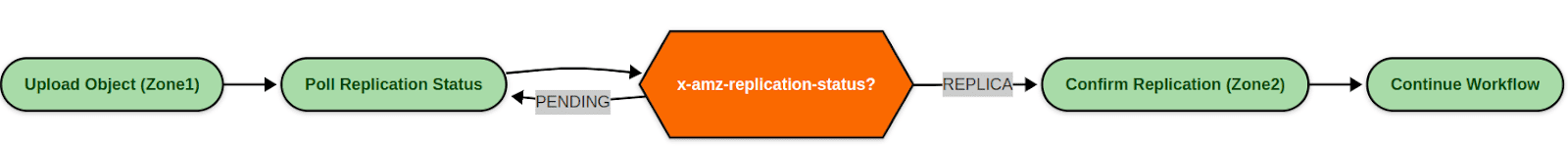

Example of How to Use these Headers in an Application Workflow

This straightforward polling mechanism—via HEAD or info requests—can be interpolated into application workflows to confirm full replication before taking further actions. Let’s check out a basic example.

Imagine a Content Delivery Network (CDN) scenario where you must replicate files globally to ensure low-latency access for end users across multiple geographic regions. An application in one region uploads media assets (images, videos, or static website content) that must be replicated to other RGW zones before we can make them available to the end users for consumption.

Here is a code snippet with an example of using the Python library boto3 to upload media content to a site, then poll the replication status of our newly uploaded media content by querying the replication status header. Once the object has been replicated we print out relevant information including source and destination RGW zones and replication latency.

Application Example output:

Conclusion

The new replication headers in Ceph Squid Object Storage mark a significant step forward in giving developers, DevOps teams, and storage administrators more granular control over and visibility into multisite replication. By querying the x-amz-replication-status, x-rgw-replicated-from, and x-rgw-replicated-at headers, applications can confirm that objects have fully synchronized before proceeding with downstream workflows. This simple yet powerful capability can streamline CDN distribution, data analytics pipelines, and other use cases that demand multisite consistency.

Note that some features described here may not be available before the Squid 19.2.2 release.

The authors would like to thank IBM for supporting the community with our time to create these posts.
