IBM Storage Ceph Object Storage Multisite Replication Series Part Eight: Archive Zone Recovery ¶
In part eight of this Ceph Multisite series, we will continue exploring the Archive Zone. Using a hands-on example of recovering data from the archive zone, we will cover in detail how the archive zone works.
Introduction ¶
Let's start with a visual representation of the recovery workflow for the archive zone. Once covered, we will follow the same steps with a hands-on example.

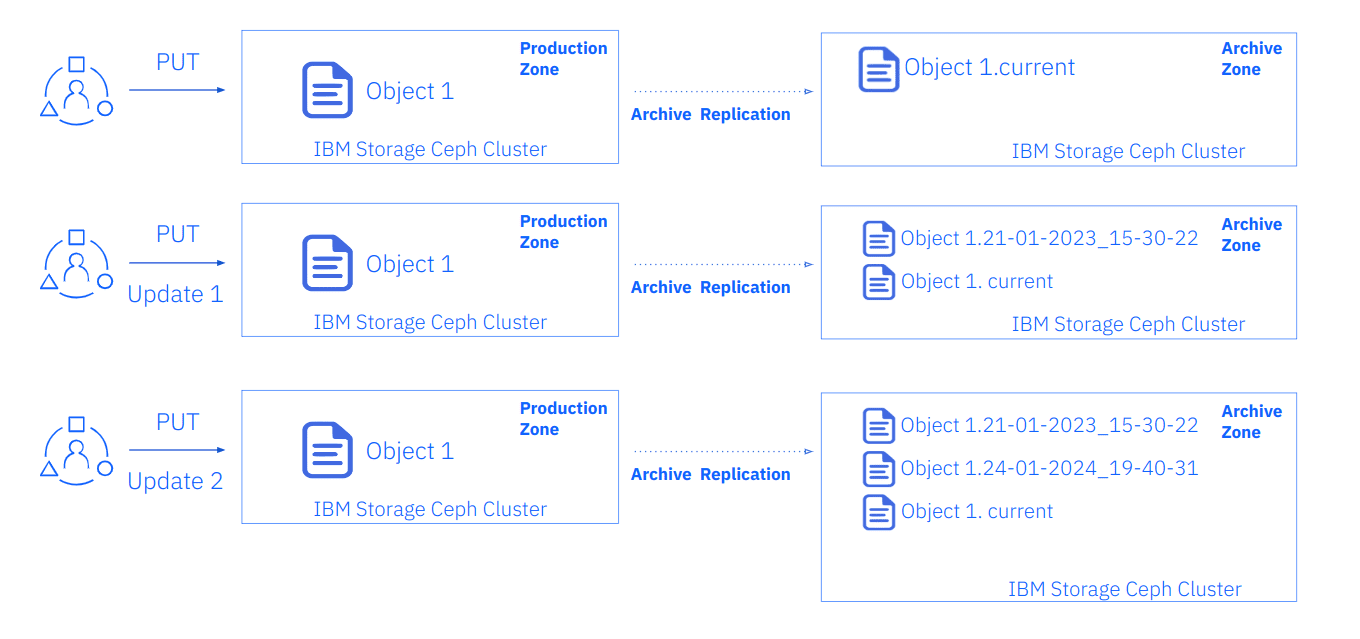

The following diagram shows the behaviour of the Archive zone when a user PUTs an object into the production zone.
- With the first PUT of
object1from the user into the production zone, the object replicates into the archive zone as the current version. - When the user issues a second PUT that updates
object1, the modification is replicated to the archive zone. The modified object is now the current version and the old (initial, original) object is still available in the archive zone thanks to S3 versioning. - If the user issues a third PUT that updates
object1, the same will happen as in step2, and we will have three versions of the object available in the archive zone.

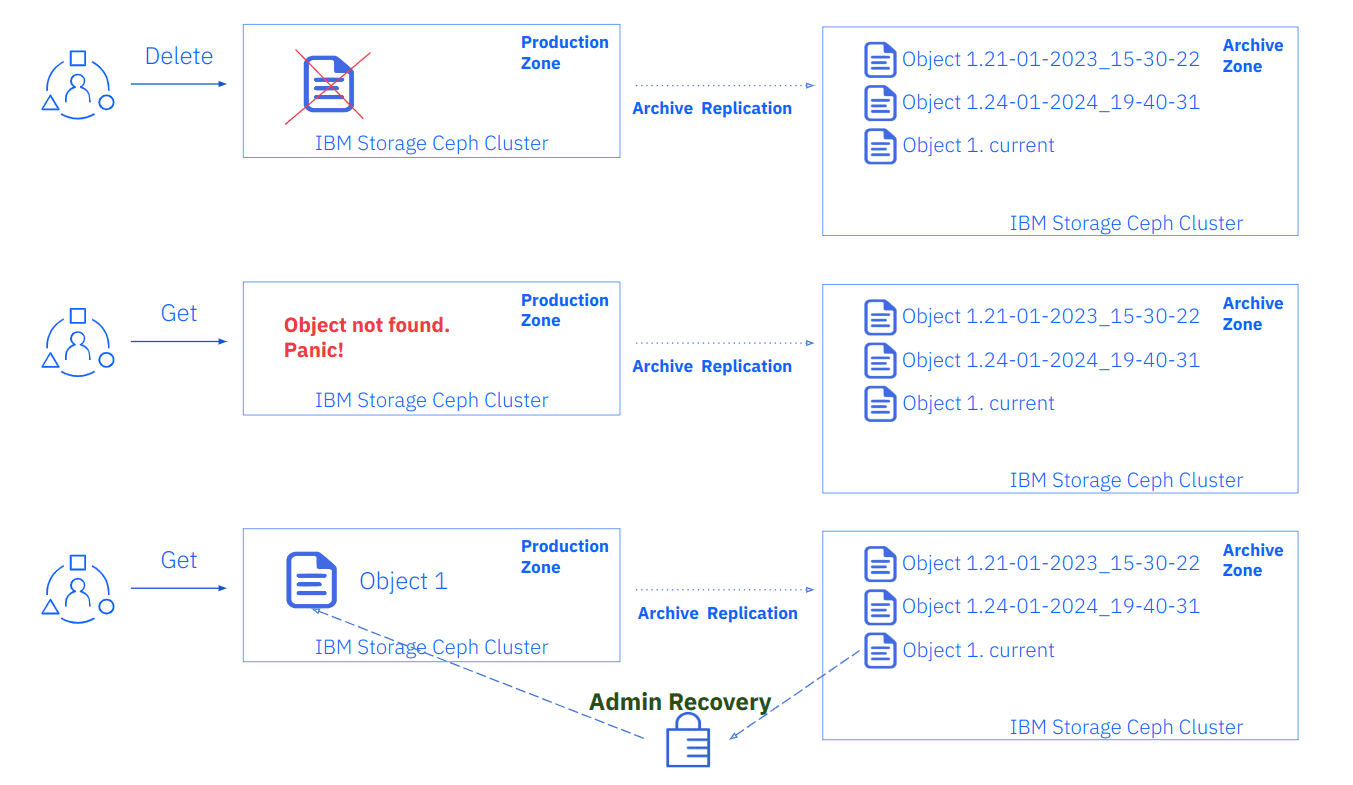

Continuing with the example depicted above, let's check how we could recover data from a logical failure.
- During the application X rollout, a user makes an operational mistake and deletes
object1in the production zone. The object is not deleted from the archive zone. - When our production application X tries to access
object1, it fails. The application is down, and panic ensues. - The application team RCAs the issue, and they make a quick call to the storage team specifying the object and what version (date/time) they wish to recover from. Promises of vegan brownies may be involved.
- The storage team copies
object1's latest version from the archive zone into the production cluster.
Hands-on Object Recovery from the Archive Zone Workflow ¶
Prepare the Client Environment ¶
We are going to use rclone CLI tool for our testing. First, we create a specific user for our tests, so in our zone1 cluster, we run:
# radosgw-admin user create --uid=archuser --display-name="S3 user to test the archive zone" --access-key=archuser --secret-key=archuser
{
"user_id": "archuser",
"display_name": "S3 user to test the archive zone",
"email": "",
"suspended": 0,
"max_buckets": 1000,
"subusers": [],
"keys": [
{
"user": "archuser",
"access_key": "archuser",
"secret_key": "archuser"
}
],
"swift_keys": [],
"caps": [],
"op_mask": "read, write, delete",
"default_placement": "",
"default_storage_class": "",
"placement_tags": [],
"bucket_quota": {
Now we configure the AWS client with this user:
# aws configure
AWS Access Key ID [None]: archuser
AWS Secret Access Key [None]: archuser
Default region name [None]: multizg
Default output format [None]: text
We will also create a couple of aliases to make our life easier.
Alias for zone1 and the archive zone:
# alias s3apiarchive='aws --endpoint=https://object.s3.archive.dan.ceph.blue:443 s3api'
# alias s3apizone1='aws --endpoint=https://object.s3.zone1.dan.ceph.blue:443 s3api'
We wish to use rclone, so let's download and install the appropriate rclone package:
# yum install https://downloads.rclone.org/v1.62.0/rclone-v1.62.0-linux-amd64.rpm -y
Next we configure the rclone client with our production zone endpoint and the archive zone endpoint. This way, with the use of rclone we can recover data from the archive zone if required:
cat <<EOF >rclone.conf
[zone1]
type = s3
provider = Other
access_key_id = archuser
secret_access_key = archuser
endpoint = https://object.s3.zone1.dan.ceph.blue:443
location_constraint = multizg
acl = bucket-owner-full-control
[archive]
type = s3
provider = Ceph
access_key_id = archuser
secret_access_key = archuser
endpoint = https://object.s3.archive.dan.ceph.blue:443
location_constraint = multizg
acl = bucket-owner-full-control
EOF
Next we create some test files and capture their MD5 checksums so we can compare later:
# echo "This is file 1" > /tmp/test-file-1
# echo "This is file 2" > /tmp/test-file-2
# echo "This is file 3" > /tmp/test-file-3
# md5sum /tmp/test-file-1
88c16a56754e0f17a93d269ae74dde9b /tmp/test-file-1
# md5sum /tmp/test-file-2
db06069ef1c9f40986ffa06db4fe8fd7 /tmp/test-file-2
# md5sum /tmp/test-file-3
95227e10e2c33771e1c1379b17330c86 /tmp/test-file-3
Archive Zone Testing ¶
We have our client ready, let’s check out the archive zone.
Create a new bucket and verify the bucket has been created in all RGW zones:
# s3apizone1 create-bucket --bucket my-bucket
# s3apizone1 list-buckets
BUCKETS 2023-03-15T12:03:54.315000+00:00 my-bucket
OWNER S3 user to test the archive zone archuser
# s3apiarchive list-buckets
BUCKETS 2023-03-15T12:03:54.315000+00:00 my-bucket
OWNER S3 user to test the archive zone archuser
Verify that the object versioning is not yet configured as this is implemented lazily
# s3apizone1 get-bucket-versioning --bucket my-bucket
# s3apiarchive get-bucket-versioning --bucket my-bucket
Upload a new object to our bucket my-bucket.
# rclone copy /tmp/test-file-1 zone1:my-bucket
Verify that S3 versioning has been enabled in the archive zone but not in zone1:
# s3apiarchive get-bucket-versioning --bucket my-bucket
{
"Status": "Enabled",
"MFADelete": "Disabled"
}
# s3apizone1 get-bucket-versioning --bucket my-bucket
Verify that the object version ID is null in the master and secondary zones but not in the archive zone:
# s3apizone1 list-object-versions --bucket my-bucket
{
"Versions": [
{
"ETag": "\"88c16a56754e0f17a93d269ae74dde9b\"",
"Size": 15,
"StorageClass": "STANDARD",
"Key": "test-file-1",
"VersionId": "null",
"IsLatest": true,
"LastModified": "2023-03-15T12:07:12.914000+00:00",
"Owner": {
"DisplayName": "S3 user to test the archive zone",
"ID": "archuser"
}
}
]
}
# s3apiarchive list-object-versions --bucket my-bucket
{
"Versions": [
{
"ETag": "\"88c16a56754e0f17a93d269ae74dde9b\"",
"Size": 15,
"StorageClass": "STANDARD",
"Key": "test-file-1",
"VersionId": "6DRlC7fKtpmkvHA9zknhFA87RjyilTV",
"IsLatest": true,
"LastModified": "2023-03-15T12:07:12.914000+00:00",
"Owner": {
"DisplayName": "S3 user to test the archive zone",
"ID": "archuser"
}
}
]
}
Modify the object in the master zone and verify that a new version is created in the RGW archive zone:
# rclone copyto /tmp/test-file-2 zone1:my-bucket/test-file-1
# rclone ls zone1:my-bucket
15 test-file-1
Verify a new version has been created in the RGW archive zone:
# s3apiarchive list-object-versions --bucket my-bucket
{
"Versions": [
{
"ETag": "\"db06069ef1c9f40986ffa06db4fe8fd7\"",
"Size": 15,
"StorageClass": "STANDARD",
"Key": "test-file-1",
"VersionId": "mXoINEnZsSCDNaWwCDELVysUbnMqNqx",
"IsLatest": true,
"LastModified": "2023-03-15T12:13:27.057000+00:00",
"Owner": {
"DisplayName": "S3 user to test the archive zone",
"ID": "archuser"
}
},
{
"ETag": "\"88c16a56754e0f17a93d269ae74dde9b\"",
"Size": 15,
"StorageClass": "STANDARD",
"Key": "test-file-1",
"VersionId": "6DRlC7fKtpmkvHA9zknhFA87RjyilTV",
"IsLatest": false,
"LastModified": "2023-03-15T12:07:12.914000+00:00",
"Owner": {
"DisplayName": "S3 user to test the archive zone",
"ID": "archuser"
}
}
]
}
We can check the ETag: it will match the MD5sum for the object. This is only the case if neither multipart upload nor object encryption are configured.
# md5sum /tmp/test-file-2
db06069ef1c9f40986ffa06db4fe8fd7 /tmp/test-file-2
# md5sum /tmp/test-file-1
88c16a56754e0f17a93d269ae74dde9b /tmp/test-file-1
Recovering S3 Objects from the Rgw Archive Zone ¶
Let’s upload one more version of the object
# rclone copyto /tmp/test-file-3 zone1:my-bucket/test-file-1
In the primary zone we only have one version, the current version of the object:
# rclone --s3-versions lsl zone1:my-bucket
15 2023-03-15 07:59:10.779573336 test-file-1
But in the Archive zone we have all three versions available:
# rclone --s3-versions lsl archive:my-bucket
15 2023-03-15 07:59:10.779573336 test-file-1
15 2023-03-15 07:59:03.782438991 test-file-1-v2023-03-15-121327-057
15 2023-03-15 07:58:58.135330567 test-file-1-v2023-03-15-120712-914
Now let’s delete test-file1 from my-bucket in zone1, then recover the object from the archive zone:
# rclone delete zone1:my-bucket/test-file-1
# rclone --s3-versions lsl zone1:my-bucket
# rclone --s3-versions lsl archive:my-bucket
15 2023-03-15 07:59:10.779573336 test-file-1
15 2023-03-15 07:59:03.782438991 test-file-1-v2023-03-15-121327-057
15 2023-03-15 07:58:58.135330567 test-file-1-v2023-03-15-120712-914
The object has been deleted from zone1, but all versions are still available in the archive zone. If we recover the latest version test-file-1 it should match with the MD5 checksum for our test-file-3:
# rclone copyto archive:my-bucket/test-file-1 zone1:my-bucket/test-file-1
# rclone copyto zone1:my-bucket/test-file-1 /tmp/recovered-file1
# md5sum /tmp/recovered-file1
95227e10e2c33771e1c1379b17330c86 /tmp/recovered-file1
# md5sum /tmp/test-file-3
95227e10e2c33771e1c1379b17330c86 /tmp/test-file-3
Now let's explore the case where we want to recover the object with the version that has a specific timestamp, for example 2023-03-15-121327-057.
# rclone --s3-versions copyto archive:my-bucket/test-file-1-v2023-03-15-121327-057 zone1:my-bucket/test-file-1
# rclone copyto zone1:my-bucket/test-file-1 /tmp/recovered-file1
# md5sum /tmp/recovered-file1
db06069ef1c9f40986ffa06db4fe8fd7 /tmp/recovered-file1
# md5sum /tmp/test-file-2
db06069ef1c9f40986ffa06db4fe8fd7 /tmp/test-file-2
This takes us to the end of a hands-on example of working with an archive zone and, with the help of rclone, seamlessly recovering data.
Summary and Up Next ¶
We introduced the archive zone feature in part eight of this series. We shared a hands-on example of recovering data from an archive zone. This takes us to the end of this Ceph Object Storage Multisite series.
We hope this content has been helpful for your Ceph endeavours.
