Ceph Object Storage Multisite Replication Series. Part Four
IBM Storage Ceph Object Storage Multisite Replication Series ¶
In the previous episode of the series, we discussed configuring dedicated RGW services for client and replication requests. Additionally, we explored the performance enhancements the sync fairness feature offer. In the fourth article of this series, we will be talking about load balancing our freshly deployed RGW S3 endpoints to provide high-availability and increased performance by distributing requests across individual RGW services.
Load-Balancing RGW S3 endpoints ¶
Introduction ¶
In the previous installment, we configured four RGW instances: two dedicated to client S3 API requests and the rest for multisite replication requests. With this configuration, clients can connect to each RGW endpoint individually to use the HTTP restful S3 API. They could, for example, issue an S3 call like a LIST using as an endpoint the IP/FQDN of one of the nodes running and RGW service.
Here's an example with the AWS s3 client: $ aws –endpoint https://ceph-node02 s3 ls
. They will be able to access their buckets and data.
The problem is, what happens if ceph-node02

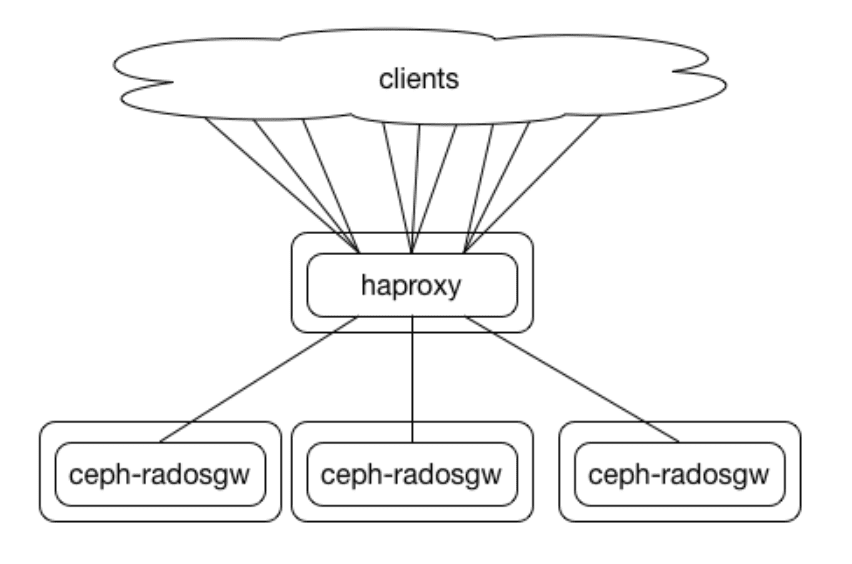

goes down? The user will start getting error messages and failed requests, even if the rest of the RGW services are running fine on the surviving nodes. To avoid this behaviour, providing high availability and increased performance, we need to configure a load balancer in front of our RGW services. Because the RGW endpoints are using the HTTP protocol, we have multiple well-known solutions to load balance HTTP requests. These include hardware-based commercial solutions as well as open-source software load balancers. We need to find a solution that will cover our performance needs depending on the size of our deployment and specific requirements. There are some great examples of different RadosGW load-balancing mechanisms in this github repository from Kyle Bader.
Inter-Site Replication Network ¶
Each site's network infrastructure must offer ample bandwidth to support reading and writing of replicated objects or erasure-coded object shards. We recommend that the network fabric of each site has either zero (1:1) or minimal oversubscription (e.g., 2:1). One of the most used network topologies for Ceph cluster deployments is Leaf and Spine as it can provide the needed scalability.
Networking between zones participating in the same zone group will be utilized for asynchronous replication traffic. The inter-site bandwidth must be equal to or greater than ingest throughput to prevent synchronisation lag from growing and increasing the risk of data loss. Inter-site networking will not be relied on for read traffic or reconstitution of objects because all objects are locally durable. Path diversity is recommended for inter-site networking, as we generally speak of WAN connections. The inter-site networks should be routed (L3) instead of switched (L2 Extended Vlans) in order to provide independent networking stacks at each site. Finally, even if we are not doing so in our lab example, Ceph Object Gateway synchronization should be configured to use HTTPS endpoints to encrypt replication traffic with SSL/TLS in production.
The Ingress Service Overview ¶
Beginning with the Pacifc release, Ceph provides a cephadm service called ingress
, which provides an easily deployable HA and load-balancing stack based on Keepalived and HAproxy.

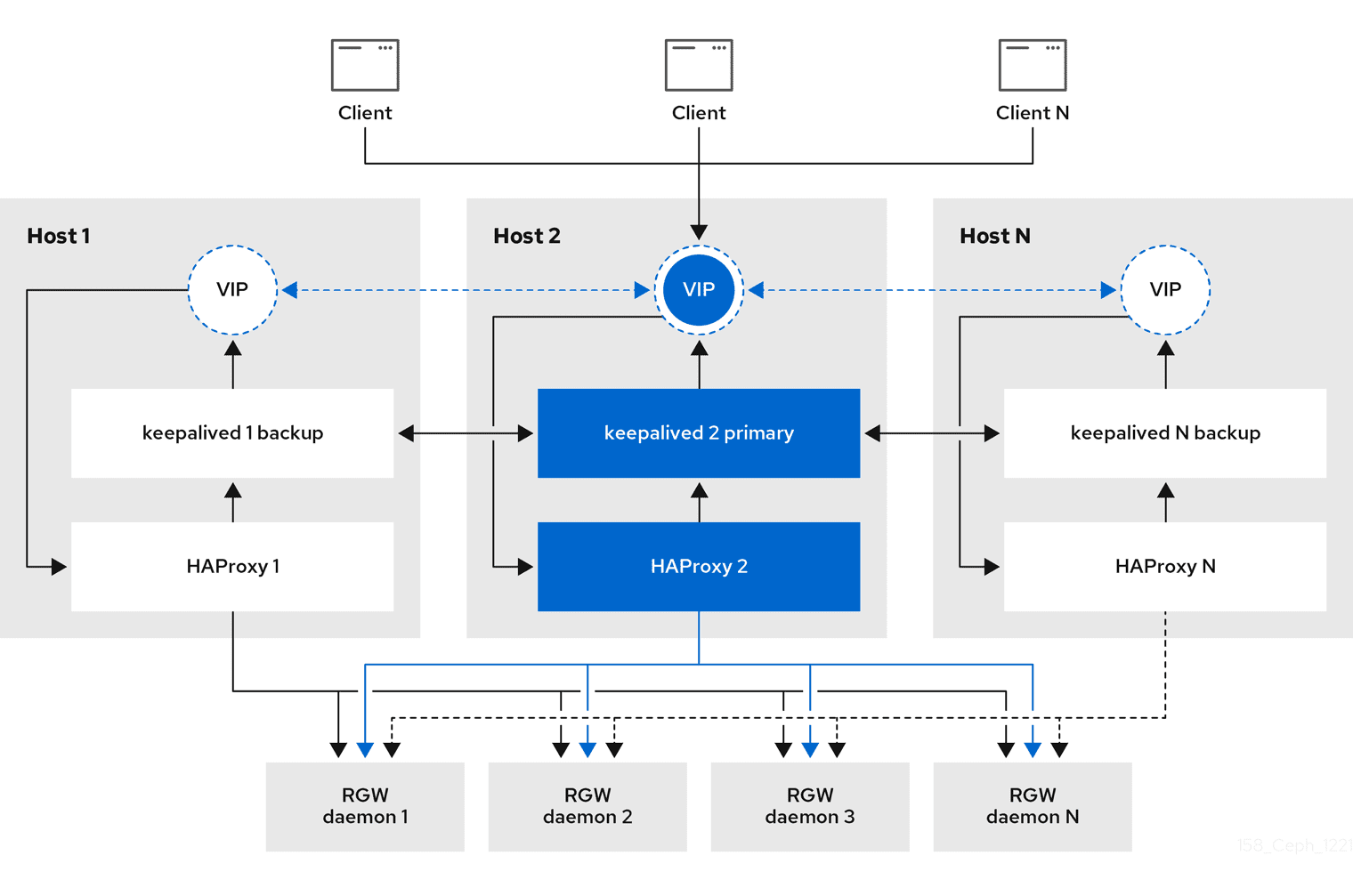

The ingress service allows you to create a high-availability endpoint for RGW with a minimum of configuration options. The orchestrator will deploy and manage a combination of HAproxy and Keepalived to balance the load on the different configured floating virtual IPs.
There are mutliple hosts where the ingress service is deployed. Each host has an HAproxy daemon and a keepalived daemon.
By default, a single virtual IP address is automatically configured by Keepalived on one of the hosts. Having a single VIP means that all traffic for the load-balancer will flow through a single host. This is less than ideal for configurations that service a high number of client requests while maintaining high throughput. We recommend configuring one VIP address per ingress node. We can then, for example, configure round-robin DNS across all deployed VIPs to load balance requests across all VIPs. This provides the possibility to achieve higher throughput as we are using more than one host to load-balance client HTTP requests across our configured RGW services. Depending on the size and requirements of the deployment, the ingress service may not be adequate, and other more scalable solutions can be used to balance the requests, like BGP + ECMP.
Deploying the Ingress Service ¶
In this post, we will configure the ingress load balancing service so we can load-balance S3 client HTTP requests across the public-facing RGW services running on nodes ceph-node-02
and ceph-node-03
in zone1
, and ceph-node-06
and ceph-node-07
in zone2
.

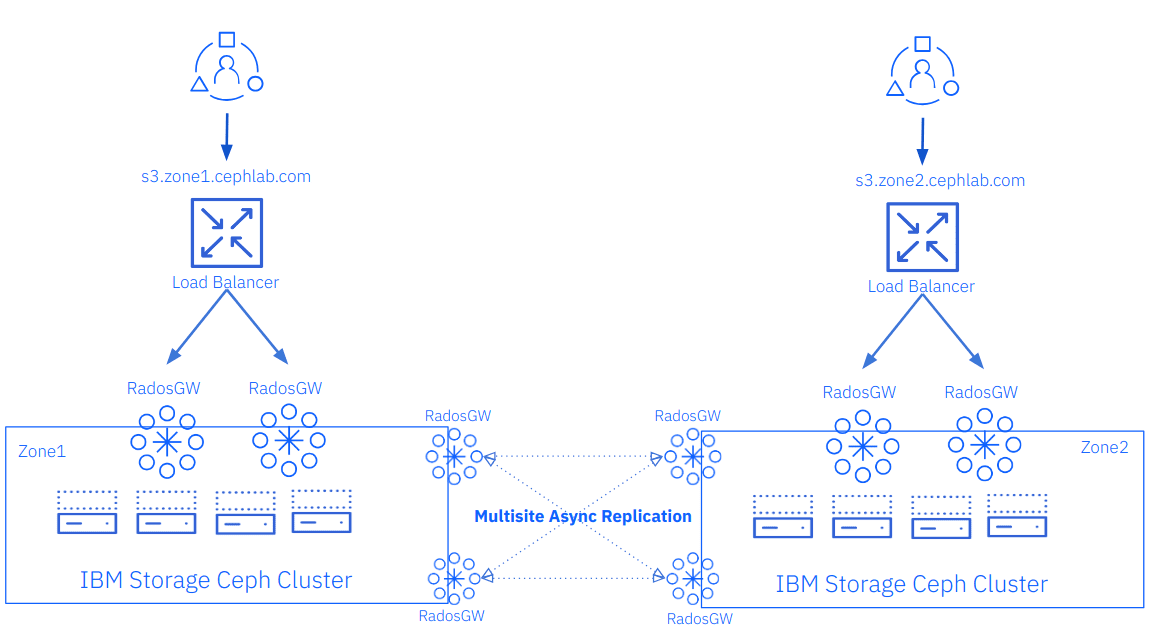

In the following diagram, we depict at a high level the new load balancer components we are adding to our previously deployed architecture. In this way we will provide HA and load balancing for S3 client requests.
The first step is to create, as usual, a cephadm service spec file. In this case, the service type will be ingress
. We specify our existing public RGW service name rgw.client-traffic
as well as the service_id
and backend_service
parameters. We can get the name of the cephadm services using the cephadm orch ls
command.
We will configure one VIP per ingress service daemon, and two nodes to manage the ingress service with VIPs per Ceph cluster. We will enable SSL/HTTPS for client connections terminating at the ingress service.
[root@ceph-node-00 ~]# ceph orch ls | grep rgw
rgw.client-traffic ?:8000 2/2 4m ago 3d count-per-host:1;label:rgw
rgw.multisite.zone1 ?:8000 2/2 9m ago 3d count-per-host:1;label:rgwsync
[root@ceph-node-00 ~]# cat << EOF > rgw-ingress.yaml
service_type: ingress
service_id: rgw.client-traffic
placement:
hosts:
- ceph-node-02.cephlab.com
- ceph-node-03.cephlab.com
spec:
backend_service: rgw.client-traffic
virtual_ips_list:
- 192.168.122.150/24
- 192.168.122.151/24
frontend_port: 443
monitor_port: 1967
ssl_cert: |
-----BEGIN CERTIFICATE-----
-----END CERTIFICATE-----
-----BEGIN CERTIFICATE-----
-----END CERTIFICATE-----
-----BEGIN PRIVATE KEY-----
-----END PRIVATE KEY-----
EOF
[root@ceph-node-00 ~]# ceph orch apply -i rgw-ingress.yaml
Scheduled ingress.rgw.client update...
NOTE: The ingress service builds from all the certs we add to the ssl_cert
list a single certificate file named HAproxy.pem
. For the certificate to work, HAproxy requires that you add the certificates in the following order: cert.pem
first, then the chain certificate, and finally, the private key.
Soon we can see our HAproxy and Keepalived services running on ceph-node-[02/03]
:
[root@ceph-node-00 ~]# ceph orch ps | grep -i client
haproxy.rgw.client.ceph-node-02.icdlxn ceph-node-02.cephlab.com *:443,1967 running (3d) 9m ago 3d 8904k - 2.4.22-f8e3218 0d25561e922f 9e3bc0e21b4b
haproxy.rgw.client.ceph-node-03.rupwfe ceph-node-03.cephlab.com *:443,1967 running (3d) 9m ago 3d 9042k - 2.4.22-f8e3218 0d25561e922f 63cf75019c35
keepalived.rgw.client.ceph-node-02.wvtzsr ceph-node-02.cephlab.com running (3d) 9m ago 3d 1774k - 2.2.8 6926947c161f 031802fc4bcd
keepalived.rgw.client.ceph-node-03.rxqqio ceph-node-03.cephlab.com running (3d) 9m ago 3d 1778k - 2.2.8 6926947c161f 3d7539b1ab0f
You can check the configuration of HAproxy from inside the container: it is using static round-robin load balancing between both of our client-facing RGWs configured as the backends. The frontend listens on port 443 with our certificate in the path /var/lib/haproxy/haproxy.pem
:
[root@ceph-node-02 ~]# podman exec -it ceph-haproxy-rgw-client-ceph-node-02-jpnuri cat /var/lib/haproxy/haproxy.cfg | grep -A 15 "frontend frontend"
frontend frontend
bind *:443 ssl crt /var/lib/haproxy/haproxy.pem
default_backend backend
backend backend
option forwardfor
balance static-rr
option httpchk HEAD / HTTP/1.0
server rgw.client-traffic.ceph-node-02.yntfqb 192.168.122.94:8000 check weight 100
server rgw.client-traffic.ceph-node-03.enzkpy 192.168.122.180:8000 check weight 100
For this example, we have configured basic DNS round robin using the load balancer CoreDNS plugin. We are resolving s3.zone1.cephlab.com
across all configured ingress VIPs. As you can see with the following example, each request for s3.zone1.cephlab.com
resolves to a different Ingress VIP.
[root@ceph-node-00 ~]# ping -c 1 s3.zone1.cephlab.com
PING s3.cephlab.com (192.168.122.150) 56(84) bytes of data.
[root@ceph-node-00 ~]# ping -c 1 s3.zone1.cephlab.com
PING s3.cephlab.com (192.168.122.151) 56(84) bytes of data.
You can now point the S3 client to s3.zone1.cephlab.com
to access the RGW S3 API endpoint.
[root@ceph-node-00 ~]# aws --endpoint https://s3.zone1.cephlab.com:443 s3 ls
2024-01-04 13:44:00 firstbucket
At this point, we have high availability and load balancing configured for zone1
. If we lose one server running the RGW service, client requests will be redirected to the remaining RGW service.
We need to do the same steps for the second Ceph cluster that hosts zone2
, so we will end up with a load-balanced endpoint per zone:
s3.zone1.cephlab.com
s3.zone2.cephlab.com
As a final step, we could deploy a global load balancer (GLB). This is not part of the Ceph solution and should be provided by a third party; there are many DNS global load balancers available that implement various load balancing policies.
As we are using SSL/TLS in our lab per-site load balancers, if we were to configure a GLB we will need to implement TLS passthrough or re-encrypt client connections so connections will be encrypted from the client to the per-site load balancer. Using a GLB has significant advantages:
Taking advantage of the active/active nature of Ceph Object storage replication, you can provide users with a single S3 endpoint FQDN and then apply policy at the load balancer to send the user request to one site or the other. The load balancer could, for example, redirect the client to the S3 endpoint closest to their location.
If you need an active/passive disaster recovery approach, a GLB can enhance failover. Users will have a single S3 endpoint FQDN o use. During normal operations, they will always be redirected to the primary site. In case of site failure the GLB will detect the failure of the primary site, and redirect the users transparently to the secondary site, enhancing user experience and reducing the failover time.

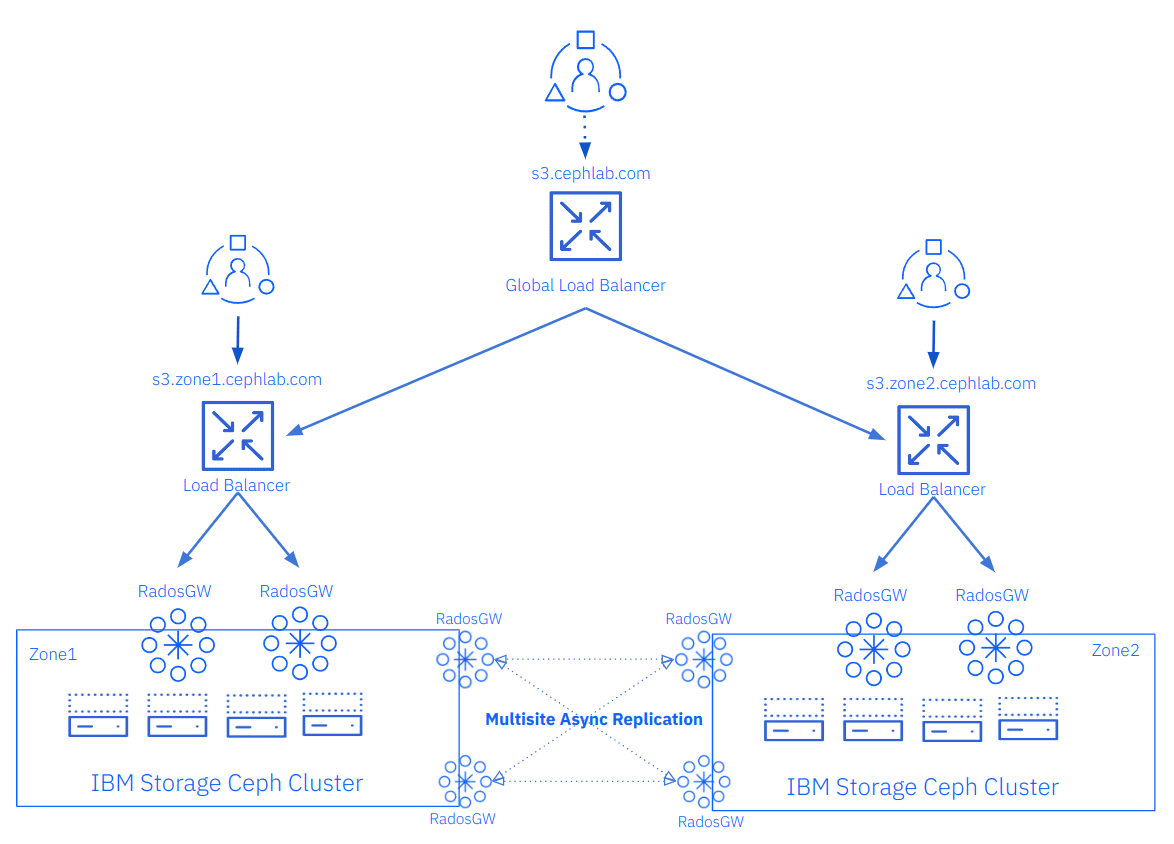

In the following diagram we provide an example where we add a GLB with the FQDN s3.cephlab.com
. Clients connect to s3.cephlab.com
and will be redirected to one or the other site based on the applied policy at the GLB level
Should we use a load balancer for RGW replication endpoints? ¶
In the load balancing ingress service examples we shared, we configured load balancing for S3 client endpoints, so the client HTTP requests are distributed among the available RGW services. We haven’t yet dicusssed the RGWs serving multisite sync requests. In our previous installment, we configured two RGWs dedicated to multisite sync operations. How do we load-balance sync requests across the two RGWs if we don’t have an ingress service or external load balancer configured?.
RGW implements round-robin at the zonegroup and zone endpoint levels. We can configure a comma-separated list of RGW services IP address or hostnames. The RGW service code will load-balance the request among the entries in the list.
Replication endpoints for our multizg
zone group:
[root@ceph-node-00 ~]# radosgw-admin zonegroup get | jq .endpoints
[
"http://ceph-node-04.cephlab.com:8000",
"http://ceph-node-05.cephlab.com:8000"
]
Replication endpoints for our zone1 and zone2 zones.
[root@ceph-node-00 ~]# radosgw-admin zonegroup get | jq .zones[].endpoints
[
"http://ceph-node-00.cephlab.com:8000",
"http://ceph-node-01.cephlab.com:8000"
]
[
"http://ceph-node-04.cephlab.com:8000",
"http://ceph-node-05.cephlab.com:8000"
]
We can take another approach using a load balancer for multisite sync endpoints. For example, a dedicated ingress service or any other HTTP load balancer. If we take this approach, we would just have a single FQDN in the list of zonegroup and zone endpoints.
What would be the best solution, a dedicated load balancer or RGW round-robin on the provided list of endpoints? ¶
It depends.. external load balancing could be better if the load balancer can offer at least the same throughput as round-robin of the configured dedicated RGW services. As an example, if our external load balancer is HAproxy running on a single VM with a single VIP and limited network throughput, we are better off using the RGW round-robin replication endpoint list option. For releases after a PR from early 2024 was merged, I would say that both options are ok. You need to trade the simplicity of just setting up a list of IPs for the endpoints, which is done for us automatically with the RGW manager module, against the more advanced features that a full-blown load-balancer can offer.
Summary & Up Next ¶
In part four of this series, we discussed everything related to load-balancing our RGW S3 endpoints. We covered multiple Load-balancing techniques, including the bundled Ceph0provided load balancer, the Ingress service
. In part five, we will detail the new Sync Policy feature that provides Object Multisite replication with a granular and flexible sync policy scheme.
