Ceph Object Storage Multisite Replication Series ¶
In the previous episode, we introduced Ceph Object Storage multisite features. We described the lab setup we will use in the following chapters to deploy and configure Ceph object multisite asynchronous replication.

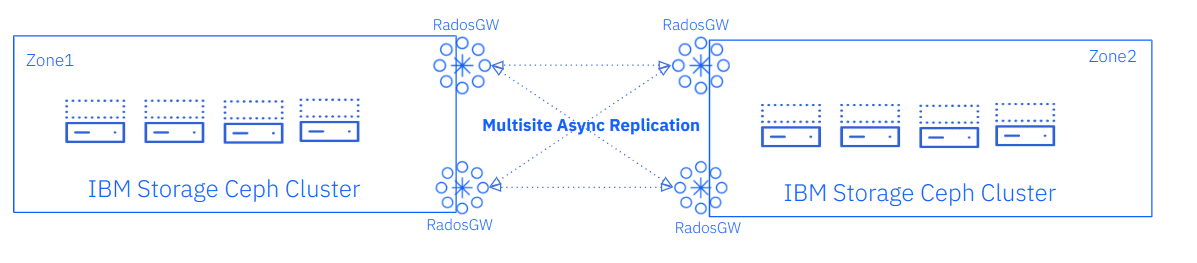

Part two of this series will enumerate the steps to establish the initial multisite replication between our Ceph clusters, as depicted in the following diagram.

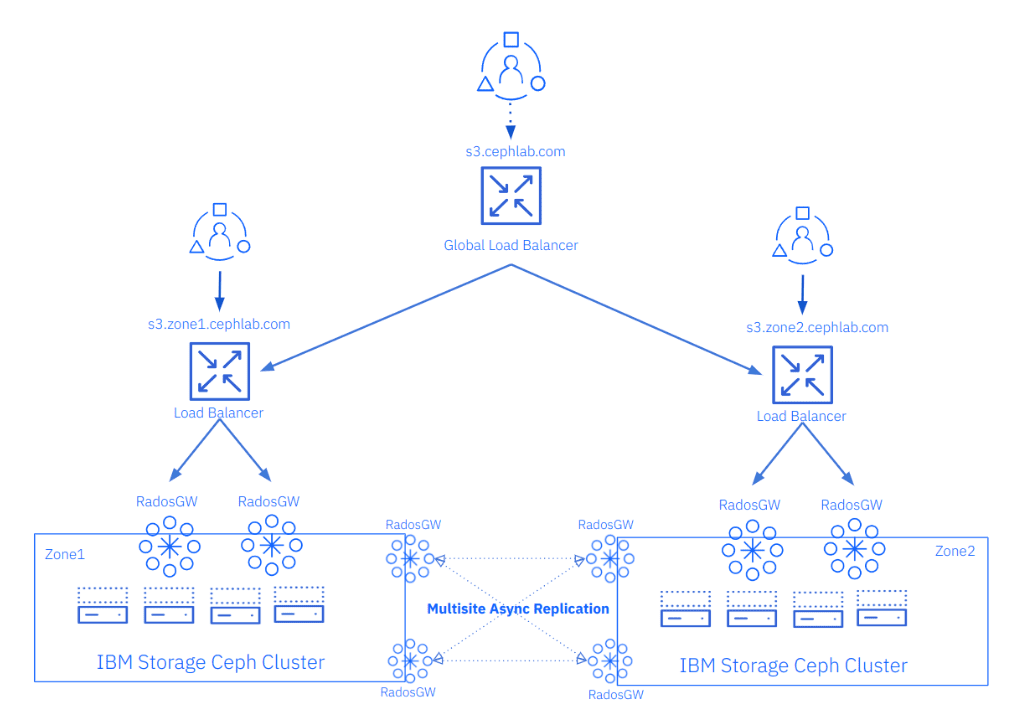

Ceph Object Storage Multisite Initial Configuration ¶
As part of the Quincy release, a new Manager module named rgw was added to the Ceph orchestrator cephadm. The rgw manager module makes the configuration of multisite replication straightforward. This section will show you how to configure Ceph Object Storage multisite replication between two zones (each zone is an independent Ceph cluster) through the CLI using the new rgw manager module.
We will start by creating an RGW module spec file for cluster1.
We will use labels on our hosts to help define which nodes may host each service. In this case, for the replication RGW services, we set the rgwsync label. Any host that has this label configured will start an RGW service with the specs defined in the file. The rest of the options included will take care of configuring the names for our realm, zonegroup and zone, and direct that the RGW services listen on port 8000/tcp.
[root@ceph-node-00 ~]# cat << EOF >> /root/rgw.spec
placement:
label: rgwsync
count_per_host: 1
rgw_realm: multisite
rgw_zone: zone1
rgw_zonegroup: multizg
spec:
rgw_frontend_port: 8000
EOF
In our first cluster, we want to run the sync RGW services on nodes ceph-node-00 and ceph-node-01, so we need to label the corresponding nodes:
[root@ceph-node-00 ~]# ceph orch host label add ceph-node-00.cephlab.com rgwsync
Added label rgwsync to host ceph-node-00.cephlab.com
[root@ceph-node-00 ~]# ceph orch host label add ceph-node-01.cephlab.com rgwsync
Added label rgwsync to host ceph-node-01.cephlab.com
Once the nodes have been labeled, we enable the RGW manager module and bootstrap the RGW multisite configuration. When bootstrapping the multisite config, the rgw manager module will take care of the following steps:
- Create the realm, zonegroup, and zone and apply the period
- Specific RGW RADOS pools with the name of the zone are created
- Create an RGW multisite replication sync user
- Configure the realm, zonegroup, and zone for each RGW service
- Create the RGW services using the cephadm orchestrator
[root@ceph-node-00 ~]# ceph mgr module enable rgw
[root@ceph-node-00 ~]# ceph rgw realm bootstrap -i rgw.spec
Realm(s) created correctly. Please use 'ceph rgw realm tokens' to get the token.
Let’s check the realm:
[root@ceph-node-00 ~]# radosgw-admin realm list
{
"default_info": "d85b6eef-2285-4072-8407-35e2ea7a17a2",
"realms": [
"multisite"
]
}
Multisite sync user:
[root@ceph01 ~]# radosgw-admin user list | grep sysuser
"Sysuser-multisite"
Multisite sync user:
[root@ceph01 ~]# radosgw-admin user list | grep sysuser
"Sysuser-multisite"
Zone1 RGW RADOS pools:
[root@ceph01 ~]# ceph osd lspools | grep rgw
24 .rgw.root
25 zone1.rgw.log
26 zone1.rgw.control
27 zone1.rgw.meta
Once we create the first bucket, the bucket index pool will be created automatically. Also, once we upload the first objects/data to a bucket in zone1, the data pool will be created for us. By default pools with a replication factor of 3 are created using the cluster's pre-defined CRUSH rule replicated_rule. If we want to use Erasure Coding (EC) the data pool or customize, for example, the failure domain, we need to manually pre-create the pools with our customizations before we start uploading data into the first bucket.
NOTE: Don’t forget to double-check that your RGW pools have the right number of Placement Groups (PGs) to provide the required performance. We can choose to enable the PG autoscaler manager module with the bulk flag set for each pool, or we can statically calculate the number of PGs our pools are going to need up front with the help of the PG calculator. We suggest a target of 200 PG replicas per OSD, the "PG ratio".
NOTE: Only RGW data pools can be configured with erasure coding. The rest of the RGW pool constellation must be configured with to use replication scheme, by default with size=3.
The RGW services are up and running service the S3 endpoint on port 8000:
[root@ceph-node-00 ~]# curl http://ceph-node-00:8000
<?xml version="1.0" encoding="UTF-8"?><ListAllMyBucketsResult xmlns="http://s3.amazonaws.com/doc/2006-03-01/"><Owner><ID>anonymous</ID><DisplayName></DisplayName></Owner><Buckets></Buckets></ListAllMyBucketsResult>
The RGW manager module creates a token with encoded information of our deployment. Other Ceph clusters that want to be added as a replicated zone to our multisite configuration can import this token into the RGW manager module and have replication configured and running with a single command.
We can check the contents of the token with the ceph rgw realm tokens command and decode it with the base64 command. As you can see, it provides the required information for the secondary zone to connect to the primary zonegroup and pull the realm and zonegroup configuration.
[root@ceph-node-00 ~]# TOKEN=$(ceph rgw realm tokens | jq .[0].token | sed 's/"//g')
[root@ceph-node-00 ~]# echo $TOKEN | base64 -d
{
"realm_name": "multisite",
"realm_id": "d85b6eef-2285-4072-8407-35e2ea7a17a2",
"endpoint": "http://ceph-node-00.cephlab.com:8000",
"access_key": "RUB7U4C6CCOMG3EM9QGF",
"secret": "vg8XFPehb21Y8oUMB9RS0XXXXH2E1qIDIhZzpC"
}
You can see from the prompt that we have switched to our second Ceph cluster, having copied the token from our first cluster and defined the rest of the parameters similarly to the first cluster.
[root@ceph-node-04 ~]# cat rgw2.spec
placement:
label: rgwsync
count_per_host: 1
rgw_zone: zone2
rgw_realm_token: ewogICAgInJlYWxtX25hbWUiOiAibXVsdGlzaXRlIiwKICAgICJyZWFsbV9pZCI6ICIxNmM3OGJkMS0xOTIwLTRlMjMtOGM3Yi1lYmYxNWQ5ODI0NTgiLAogICAgImVuZHBvaW50IjogImh0dHA6Ly9jZXBoLW5vZGUtMDEuY2VwaGxhYi5jb206ODAwMCIsCiAgICAiYWNjZXNzX2tleSI6ICIwOFlXQ0NTNzEzUU9LN0pQQzFRUSIsCiAgICAic2VjcmV0IjogImZUZGlmTXpDUldaSXgwajI0ZEw4VGppRUFtOHpRdE01ZGNScXEyTjYiCn0=
spec:
rgw_frontend_port: 8000
We label the hosts that will run the Ceph RGW sync services:
[root@ceph-node-04 ~]# ceph orch host label add ceph-node-04.cephlab.com rgwsync
Added label rgwsync to host ceph-node-04.cephlab.com
[root@ceph-node-04 ~]# ceph orch host label add ceph-node-05.cephlab.com rgwsync
Added label rgwsync to host ceph-node-05.cephlab.com
Enable the module, and run the ceph rgw zone create command with the spec file we created a moment ago:
[root@ceph02 ~]# ceph mgr module enable rgw
[root@ceph02 ~]# ceph rgw zone create -i rgw2.spec --start-radosgw
Zones zone2 created successfully
The rgw manager module will take care of pulling the realm and zonegroup periods using the access and secret keys from the multisite sync user. Finally, it will create zone2 and do a final period update so all zones have the latest configuration changes in place with zone2 added to zonegroup multizg. In the following output from the radosgw-admin zonegroup get command we can see the zone groupendpoints. We can also see that zone1 is the master zone for our zonegroup and the corresponding endpoints for zone1 and zone2.
[root@ceph-node-00 ~]# radosgw-admin zonegroup get
{
"id": "2761ad42-fd71-4170-87c6-74c20dd1e334",
"name": "multizg",
"api_name": "multizg",
"is_master": true,
"endpoints": [
"http://ceph-node-04.cephlab.com:8000",
"http://ceph-node-05.cephlab.com:8000"
],
"hostnames": [],
"hostnames_s3website": [],
"master_zone": "66df8c0a-c67d-4bd7-9975-bc02a549f13e",
"zones": [
{
"id": "66df8c0a-c67d-4bd7-9975-bc02a549f13e",
"name": "zone1",
"endpoints": [
"http://ceph-node-00.cephlab.com:8000",
"http://ceph-node-01.cephlab.com:8000"
],
"log_meta": false,
"log_data": true,
"bucket_index_max_shards": 11,
"read_only": false,
"tier_type": "",
"sync_from_all": true,
"sync_from": [],
"redirect_zone": "",
"supported_features": [
"compress-encrypted",
"resharding"
]
},
{
"id": "7b9273a9-eb59-413d-a465-3029664c73d7",
"name": "zone2",
"endpoints": [
"http://ceph-node-04.cephlab.com:8000",
"http://ceph-node-05.cephlab.com:8000"
],
"log_meta": false,
"log_data": true,
"bucket_index_max_shards": 11,
"read_only": false,
"tier_type": "",
"sync_from_all": true,
"sync_from": [],
"redirect_zone": "",
"supported_features": [
"compress-encrypted",
"resharding"
]
}
],
"placement_targets": [
{
"name": "default-placement",
"tags": [],
"storage_classes": [
"STANDARD"
]
}
],
"default_placement": "default-placement",
"realm_id": "beeea955-8341-41cc-a046-46de2d5ddeb9",
"sync_policy": {
"groups": []
},
"enabled_features": [
"resharding"
]
}
To verify that replication is working, let’s create a user and a bucket:
[root@ceph-node-00 ~]# radosgw-admin user create --uid='user1' --display-name='First User' --access-key='S3user1' --secret-key='S3user1key'
[root@ceph-node-00 ~]# aws configure
AWS Access Key ID [None]: S3user1
AWS Secret Access Key [None]: S3user1key
Default region name [None]: multizg
Default output format [None]: json
[root@ceph-node-00 ~]# aws --endpoint http://s3.cephlab.com:80 s3 ls
[root@ceph-node-00 ~]# aws --endpoint http://s3.cephlab.com:80 s3 mb s3://firstbucket
make_bucket: firstbucket
[root@ceph-node-00 ~]# aws --endpoint http://s3.cephlab.com:80 s3 cp /etc/hosts s3://firstbucket
upload: ../etc/hosts to s3://firstbucket/hosts
If we check from our second Ceph cluster, zone2, we can see that all metadata has been replicated, and that all users and buckets that we created in zone1 are now present in zone2.
NOTE: In this example, we will use the radosgw-admin command to check, but we could also use S3 API commands pointing the AWS client to the IP/hostname of an RGW within the second zone.
[root@ceph-node-04 ~]# radosgw-admin user list
[
"dashboard",
"user1",
"sysuser-multisite"
]
[root@ceph-node-04 ~]# radosgw-admin bucket stats --bucket testbucket | jq .bucket
"testbucket"
To check replication status, we can use the radosgw-admin sync status command. For example:
[root@ceph-node-00 ~]# radosgw-admin sync status
realm beeea955-8341-41cc-a046-46de2d5ddeb9 (multisite)
zonegroup 2761ad42-fd71-4170-87c6-74c20dd1e334 (multizg)
zone 66df8c0a-c67d-4bd7-9975-bc02a549f13e (zone1)
current time 2024-01-05T22:51:17Z
zonegroup features enabled: resharding
disabled: compress-encrypted
metadata sync no sync (zone is master)
data sync source: 7b9273a9-eb59-413d-a465-3029664c73d7 (zone2)
syncing
full sync: 0/128 shards
incremental sync: 128/128 shards
data is caught up with source
