Ceph Object Storage Deep Dive Series. Part 1

Ceph RGW Architecture: A Deep Dive into its Core Foundations ¶

Introduction: The Stateless Powerhouse ¶

The Ceph Object Gateway (RGW) is far more than just a proxy; it's a high-level abstraction layer that seamlessly provides Amazon S3 and OpenStack Swift RESTful APIs on top of the underlying Reliable Autonomic Distributed Object Store (RADOS). For storage architects, the RGW is crucial because it translates standard HTTP requests for object operations into native RADOS operations executed directly against the cluster. This allows applications built for popular cloud object storage ecosystems to leverage a Ceph cluster as their storage backend without modification.

A fundamental principle governing RGW's design is its stateless nature. This critical architectural decision is the bedrock of its massive horizontal scalability and high availability. Since RGW daemons maintain no persistent tate related to client sessions, you can achieve near-linear performance scaling simply by deploying more RGW instances behind a standard load balancer. The failure of any single RGW daemon is a non-critical event because the load balancer can redirect client traffic to the remaining healthy instances, making the outage transparent to end-users. All vital state, including user metadata, bucket definitions, ACLs, and object data, is durably stored within the RADOS cluster in designated pools.

In this first deep dive, we peel back the layers to examine the RGW frontend components, the specialized RADOS pools that house its internal metadata, and the critical mechanics of bucket indexing and sharding that enable high-performance object operations.

RGW Frontends ¶

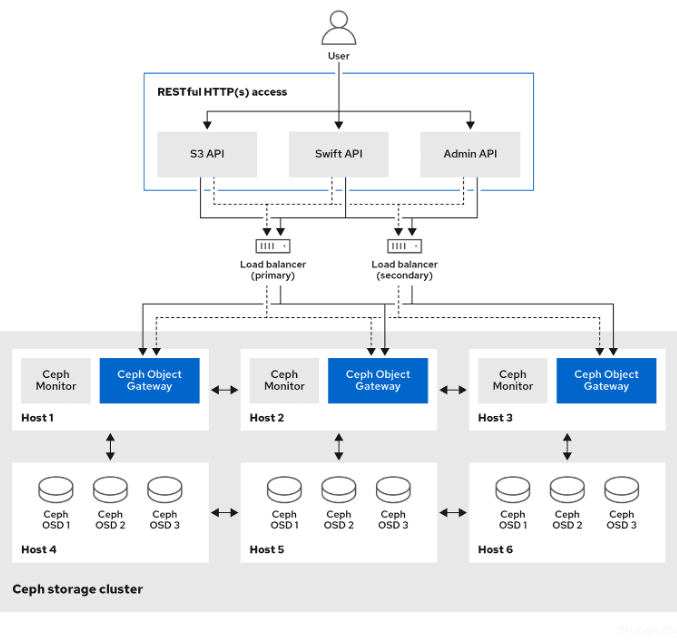

An incoming client request to an RGW daemon traverses several internal layers, beginning with the frontend web server that handles the initial HTTP connection. RGW has historically supported two primary embedded frontends: Civetweb, the legacy default, and Beast, the modern, high-performance default choice.

Civetweb operates on a synchronous, thread-per-connection model. In contrast, Beast is a modern frontend built upon Boost. The Asio C++ library facilitates an asynchronous, event-driven I/O model. Instead of dedicating a thread to each connection, Beast uses a small pool of worker threads to service thousands of connections concurrently. This model is significantly more efficient in terms of CPU and memory utilization, as threads are not blocked waiting for I/O, and the memory overhead per-connection is drastically reduced. The architectural shift from Civetweb to Beast was a direct response to the demands of modern cloud-native applications, which often generate high-concurrency, high-IOPS workloads..

Frontend Configuration in Action ¶

When deploying or modifying RGW services using cephadm, the frontend type and its settings can be specified directly within the service specification file. Beast is the default and recommended option for the RGW frontend:

service_type: rgw
service_id: myrealm.myzone
spec:
  rgw_realm: myrealm
  rgw_zone: myzone
  ssl: true
  rgw_frontend_port: 1234
  rgw_frontend_type: beast
  rgw_frontend_ssl_certificate: ...

This YAML snippet illustrates how cephadm deploys an RGW service, specifying the realm and zone, enabling SSL termination, and explicitly setting the rgw_frontend_type to beast on TCP port 1234.

Understanding RGW RADOS Pools ¶

For RGW to operate as a truly stateless component, every piece of critical information, user data, metadata, and logs must be stored persistently within the RADOS layer. This persistence is achieved through a set of specialized, dedicated RADOS pools.

RGW's multi-pool architecture is a deliberate design choice that allows operators to physically separate different classes of data onto different hardware tiers, enabling a highly optimized balance of performance and cost. For example, latency-sensitive metadata and logs can be placed on fast replicated pools backed by SSD media. At the same time, capacity-heavy object payloads can reside on erasure-coded pools supported by slower, more cost-effective HDD or increasingly QLC-class SSDs. NVMe SSDs are preferable to legacy SAS/SATA SSDs as they offer future-proofing, better density, and better performance for the money. An NVMe server can actually cost less than a SATA server.

Key RGW Pools and Their Purposes ¶

When the RGW service first tries to operate on a RADOS pool that does not exist, it will create that pool with the values of the config options osd_pool_default_pg_num and osd_pool_default_pgp_num. These defaults are sufficient for some pools, but others (especially those listed in placement_pools for the bucket index and data) will require additional tuning. Note that when the PG autoscaler is enabled it will adjust the placement group values for these pools automatically, with an increated BIAS for .index pools so that they are allocated more than their aggregate data would otherwise inform. For the autoscaler to work best with the constellation of RGW pools, we suggest raising the following values from their defaults:

# ceph config set global mon_target_pg_per_osd 300
# ceph config set global mon_max_pg_per_osd 600

Pool names specific to an RGW zone follow the naming convention zone-name.pool-name. For example, a zone named us-east will have the following pools:

.rgw.root
us-east.rgw.control
us-east.rgw.meta
us-east.rgw.log
us-east.rgw.buckets.index
us-east.rgw.buckets.data

The structure of these pools is vital for understanding RGW's operational mechanics. Many logical pools are consolidated using RADOS namespaces within the main RADOS pools (e.g., default.rgw.log).

We can list RADOS namespaces with a command of the following form. Here we can see how the rgw.meta pool contains three different RADOS namespaces:

# rados ls -p default.rgw.meta --all | awk '{ print $1 }' | sort -u
root
users.keys
users.uid

Pools with their namespaces are exposed when querying the RGW zone configuration:

$ radosgw-admin zone get --rgw-zone default
{
    "id": "d9c4f708-5598-4c44-9d36-849552a08c4d",
    "name": "default",
    "domain_root": "default.rgw.meta:root",
    "control_pool": "default.rgw.control",
    "gc_pool": "default.rgw.log:gc",
    "lc_pool": "default.rgw.log:lc",
    "log_pool": "default.rgw.log",
    "intent_log_pool": "default.rgw.log:intent",
    "usage_log_pool": "default.rgw.log:usage",
    "roles_pool": "default.rgw.meta:roles",
    "reshard_pool": "default.rgw.log:reshard",
    "user_keys_pool": "default.rgw.meta:users.keys",
    "user_email_pool": "default.rgw.meta:users.email",
    "user_swift_pool": "default.rgw.meta:users.swift",
    "user_uid_pool": "default.rgw.meta:users.uid",
    "otp_pool": "default.rgw.otp",
   ...
    "placement_pools": [
        {
            "key": "default-placement",
            "val": {
                "index_pool": "default.rgw.buckets.index",
                "storage_classes": {
                    "STANDARD": {
                        "data_pool": "default.rgw.buckets.data"
                    }
                },
                "data_extra_pool": "default.rgw.buckets.non-ec",
                "index_type": 0
            }
        }
    ],
    "realm_id": "",
    "notif_pool": "default.rgw.log:notif"
}

This JSON output details the configuration for the default zone. Notice how many different logical functions (GC, LC, usage logs) are mapped to the RADOS pool default.rgw.log` but are separated using RADOS Namespaces (e.g.,default.rgw.log:gc``).

A Detailed Overview of the Bucket Index and Sharding ¶

The ability to list the contents of a bucket is fundamental to object storage. RGW implements this using a dedicated structure called the Bucket Index, which is responsible for listing bucket content, maintaining a journal for versioned operations, storing quota metadata, and serving as a log for multi-zone synchronization.

The Bucket Index and OMAPs ¶

The bucket index relies on a special feature of RADOS objects called the Object Map (OMAP). An OMAP is a key-value store associated with a RADOS object, similar in concept to Extended Attributes in a POSIX file. For each bucket, RGW creates one or more dedicated index objects in the .rgw.buckets.index pool. The listing information for the objects within that bucket is stored within the OMAP of these index objects.

Crucially, the performance of the bucket index relies entirely on the underlying key-value database: OMAPs are physically stored within the RocksDB database residing on the OSD's DB partition. This mandates that index pools like ``default.rgw.buckets.index` must currently use a replicated data protection scheme, as OMAP operations are not compatible with erasure-coded pools. Investing in fast flash devices (SSDs, ideally NVMe) for the OSD's DB partition is paramount for bucket listing performance. RGW index pools may select a CRUSH rule that places them on pure SSD OSDs, or on hybrid OSDs with the DB offloaded to SSDs. Since omaps are purely in the DB portion of a given OSD, either strategy suffices.

Tuning the Index Pool for Performance ¶

While fast storage for OSD DBs is critical, the distribution of the bucket index across the cluster is equally essential. This is controlled by the Placement Group (PG) count of the index pool. Poor PG tuning is a common cause of poor listing performance, especially in large clusters.

Placement Group (PG) Count and Parallelism ¶

Each PG is mapped to a set of OSDs, with one acting as the primary. When RGW performs a bucket listing, it sends parallel read requests to the OMAPs of many different bucket index shard objects. A higher PG count for the index pool distributes these shards across a greater number of primary OSDs. This increases the parallelism of the listing operation, as more physical devices can concurrently service the I/O requests. A low PG count can create a bottleneck where many requests are funneled to just a few OSDs, which then become saturated.

We suggest that each index pool have at least one PG for every OSD on which it is placed. When using the PG autoscaler, index pools should automatically have a BIAS value of 4 so that they receive a higher number of PGs. See above for recommendations on central configuration settings to allow the autoscaler to provision enough PGs to index pools.

Visualizing the Bucket Index Log ¶

First, we confirm the existence and Pool ID of the bucket index pool:

$ ceph osd lspools | grep default.rgw.buckets.index
6 default.rgw.buckets.index

Here we see that RADOS pool with ID 6 is the dedicated index pool for the default zone.

Now, let’s get a bucket name to use as an example: bucket1:

$ radosgw-admin bucket list | grep bucket1
    "bucket1",

Next, we can examine the index entries for a specific bucket from the default zone, bucket1, using: radosgw-admin:

$ radosgw-admin bi list --bucket bucket1
[
    {
        "type": "plain",
        "idx": "hosts5",
        "entry": {
            "name": "hosts5",
            "instance": "",
            "ver": {
                "pool": 16,
                "epoch": 3
            },
            "locator": "",
            "exists": "true",
            "meta": {
                "category": 1,
                "size": 4066,
                "mtime": "2022-12-14T16:27:02.562603Z",
                "etag": "71ad37de1d442f5ee2597a28fe07461e",
                "storage_class": "",
                "owner": "test",
                "owner_display_name": "test",
                "content_type": "",
                "accounted_size": 4066,
                "user_data": "",
                "appendable": "false"
            },
            "tag": "_iDrB7rnO7jqyyQ2po8bwqE0vL_Al6ZH",
            "flags": 0,
            "pending_map": [],
            "versioned_epoch": 0
        }
    }
]

The radosgw-admin bi list output displays the stored metadata for an S3 object (hosts5), including size, modification time (mtime), and ETag.

The Scalability Enabler: Bucket Sharding ¶

A significant performance problem arises when a bucket index grows very large. If a bucket's index is stored in a single RADOS object, only one operation can be performed at a time. This serialization limits parallelism and can become a severe bottleneck for high-throughput write workloads.

To circumvent this limitation, RGW employs Bucket Index Sharding. This mechanism divides the bucket index into multiple parts, with each shard stored on a separate RADOS object within the index pool. When an object is written, the update is directed to a specific shard determined by a hash of the object's name. This allows multiple operations to occur concurrently across different Placement Groups (PGs) and OSDs, improving overall scalability. The number of shards should be a prime number, and is configurable with the bucket_index_max_shards config option, which defaults to 11). We can get relevant metadata information about your bucket and objects using the radosgw-admin bucket stats command, like the shard count, bucket usage, quota, versioning, object lock, owner, etc.

$ radosgw-admin bucket stats --bucket bucket1 | grep shards
    "num_shards": 11,

Bucket Index pool for the default zone:

$ ceph osd lspools | grep default.rgw.buckets.index
6 default.rgw.buckets.index

We can visually confirm the existence of these shards as discrete OMAP RADOS objects:

$ rados -p default.rgw.buckets.index ls
.dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.9
.dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.0
.dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.10
.dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.1
.dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.7
.dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.8
.dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.2
.dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.6
.dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.5
.dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.4
.dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.3

Each .dir RADOS object listed here is a separate bucket index shard. In this example, 11 shards are visible, matching the default number of shards per bucket.

At bucket creation time, the initial number of shards is set by the bucket_index_max_shards option at the zonegroup level, and it is used for all buckets. If a different number of shards is required for a specific bucket, it is possible to change it.

Note: we recommend a maximum of 102,400 S3 objects per bucket index shard.

We can get the marker for a bucket using the stats command:

$ radosgw-admin bucket stats --bucket bucket1 | grep marker
    "marker": "7fb0a3df-9553-4a76-938d-d23711e67677.34162.1",

Now that we know that the marker for bucket1 is 7fb0a3df-9553-4a76-938d-d23711e67677.34162.1. Let’s upload an object named file1 to bucket1:

$ aws --endpoint=http://ceph-node02:8080 s3 cp /etc/hosts s3://bucket1/file1 --region default
upload: ../etc/hosts to s3://bucket1/file1

Let’s investigate the bucket index for this bucket at the RADOS level. By listing the omapkeys on the bucket index object, we can see a key called file1, which matches the uploaded object name. Here we are doing a listomapkeys on one of the 11 shard objects available, in this case, shard 2. As mentioned before, objects will be spread among the different shards during creation.

$ rados -p default.rgw.buckets.index listomapkeys .dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.2
file1

When we check the values, we can see that the key/value entry in the bucket index shard 2 omap object for bucket1 is 217 bytes in size. In the hex dump we see info including the object name.

$ rados -p default.rgw.buckets.index listomapvals .dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.2
file1
value (217 bytes) :
00000000  08 03 d3 00 00 00 05 00  00 00 66 69 6c 65 31 01  |..........file1.|
00000010  00 00 00 00 00 00 00 01  07 03 5a 00 00 00 01 32  |..........Z....2|
00000020  05 00 00 00 00 00 00 4b  ab a1 63 95 74 ba 04 20  |.......K..c.t.. |

When we add more S3 objects to our bucket, we see new key/value entries for each added to the shards available for the bucket. In this example file1, file2,file4, file10 landed inn shard 2:

$ rados -p default.rgw.buckets.index listomapkeys .dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.2
file1
file2
file4
file10

We can confirm the placement of a specific shard, shard 2:

$ ceph osd map default.rgw.buckets.index .dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.2
osdmap e90 pool 'default.rgw.buckets.index' (9) object '.dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.2' -> pg 9.6fa75bc9 (9.9) -> up ([1,2], p5) acting ([1,2], p5)

This output shows that the index shard is replicated across the cluster and lives on specific OSDs. Distributing the index across multiple PGs (and therefore OSDs) enables parallelism.

The Zero-Byte Mystery: Why the Index Pool Appears Empty ¶

when you query the space usage of the bucket index pool, the result often surprises engineers unfamiliar with Ceph's OMAP architecture:

$ rados df -p default.rgw.buckets.index
POOL_NAME                  USED  OBJECTS  CLONES  COPIES  MISSING_ON_PRIMARY  UNFOUND  DEGRADED  RD_OPS       RD  WR_OPS      WR  USED COMPR  UNDER COMPR
default.rgw.buckets.index   0 B       11       0      33                   0        0         0     208  207 KiB      41  20 KiB         0 B          0 B

Even inspecting a single shard object(shard 2), shows a size of zero:

$ rados -p default.rgw.buckets.index stat .dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.2
default.rgw.buckets.index/.dir.7fb0a3df-9553-4a76-938d-d23711e67677.34162.1.2 mtime 2022-12-20T07:32:11.000000-0500, size 0

Despite containing 11 RADOS objects (shards), the pool reports 0 bytes used. This is because bucket index listing data is stored entirely as OMAP entries within the RocksDB database of each OSD, not as payload data in the RADOS object itself. This confirms why leveraging fast flash media (SSDs) for at least the OSD DB partition is essential for maximizing bucket index performance.

Managing Index Growth with Dynamic Bucket Resharding ¶

As a bucket scales to hundreds of thousands or millions of S3 objects, its index can become a performance bottleneck. By default, a single shard can become "hot" as it accumulates too many entries. The threshold for the number of S3 objects per shard is configurable, defaulting to 100,000. Very larger numbers of S3 objects per bucket reintroduce the serialization problem that sharding was designed to solve. To combat this, RGW features an advanced, automated mechanism known as Dynamic Bucket Resharding (DBR).

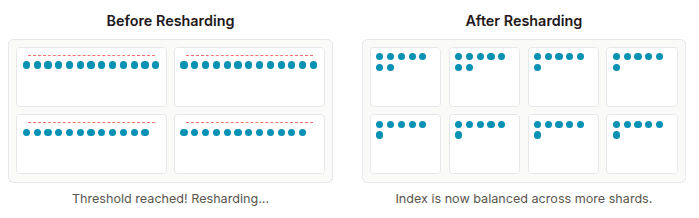

DBR is a background process that continuously monitors the number of entries in each bucket index shard. When a shard grows beyond its configured threshold, DBR automatically and online triggers a resharding operation. This process creates a new set of index objects with a greater number of shards and then safely migrates the existing index entries from the old, smaller layout to the new, larger one.

The Evolution of Online Resharding: Minimizing Impact ¶

Historically, the resharding operation required temporarily pausing write I/O to the bucket. While read operations remained unaffected, this write pause could be noticeable and painful on very active workloads.

However, a significant enhancement coming in a forthcoming Tentacle release has drastically minimized this write freeze. The new implementation makes the resharding process nearly transparent, allowing writes to proceed with minimal interruption. This improvement is a vital step forward, making dynamic resharding a seamless, production-safe feature for even the most demanding environments.

Not Just Growing, but Shrinking: The Power of Shard Merging ¶

Dynamic resharding is not limited to just scaling up. Consider a scenario in which a bucket that once held millions of objects has a massive number of them deleted. The bucket now contains many sparsely populated or even empty index shards. This is inefficient, as listing operations must still check every shard, adding unnecessary overhead.

To address this, the DBR mechanism was enhanced to support shard merging as well. As detailed in the Ceph documentation and development trackers (e.g., BZ#2135354), if the object count in a bucket drops significantly, DBR can trigger a "downsizing" resharding operation. It will migrate the entries from many sparse shards into a new, smaller, and more densely packed set of index objects.

While DBR is a powerful automated feature, for scenarios where you know a bucket will be enormous from its inception, a standard best practice remains to pre-shard the bucket at creation time. By setting an appropriate initial number of shards, you can avoid the first dynamic resharding event altogether, ensuring optimal performance from the very first object written.

The Future is Ordered: A Glimpse into In-Order Sharding ¶

Currently, RGW's hashed sharding is optimized for write distribution, but it presents a challenge for listing objects in alphabetical order. To fulfill a paginated list request, RGW must perform a "scatter-gather" operation, querying every single shard and sorting the combined results. This can become a bottleneck for buckets with a very large number of shards.

To solve this, a significant new feature known as in-order sharding (or ordered bucket listing) is in development. This upcoming evolution will change the sharding logic to place objects into shards based on their lexicographical name rather than a hash.

The impact of this change will be transformative. Instead of querying all shards, a request to list objects will be directed to the specific shard(s) that contain the requested alphabetical range. This will make paginated listing operations dramatically faster and more efficient, particularly for workloads that rely heavily on browsing or iterating through object keys.

By combining the automated scaling of Dynamic Bucket Resharding with the listing efficiency of in-order sharding, Ceph RGW is on a clear path to providing virtually limitless and performant scalability within a single bucket, catering to the most demanding data lake and AI/ML use cases of the future.

Conclusion: The Engine of Scalability ¶

So far, we have journeyed through the high-performance path of a client request, from the initial connection at the Beast frontend, through the specialized RADOS pools, and deep into the intricate mechanics of the bucket index. You now understand how OMAPs form the backbone of object listings and how Dynamic Bucket Resharding acts as the engine of scalability, allowing a single bucket to grow to billions of objects while maintaining performance. We've uncovered the core mechanisms that handle object discovery and listing at massive scale.

However, our deep dive has so far focused on the index, which are the pointers to the data. But what about the data itself? And what about the crucial control plane metadata that defines the users, accounts, and rules governing the entire system?

In Part 2 of our series, we will answer these questions. We'll shift our focus to explore the elegant head/tail model of RGW's data layout, examine the system's core metadata, and uncover the robust background processes that manage data throughout its entire lifecycle.

The authors would like to thank IBM for supporting the community with our time to create these posts.
