Performance at Scale with NVMe over TCP

Mike Burkhart, Anthony D'Atri (IBM)

Performance at Scale with NVMe over TCP

Exploring the Performance of NVMe over TCP: Revolutionizing Data Storage

In the data-driven world, the demand for faster, more efficient storage solutions is escalating. As businesses, cloud providers, and data centers look to handle ever-growing volumes of data, the performance of storage becomes a critical factor. One of the most promising innovations in this space is NVMe over TCP (NVMe/TCP aka NVMeoF), which allows the deployment of high-performance Non-Volatile Memory Express (NVMe) storage devices over traditional TCP/IP networks. This blog delves into Ceph and the performance of our newest block protocol: NVMe over TCP, its benefits, challenges, and the outlook for this technology. We will explore performance profiles and nodes populated with NVMe SSDs to detail a design optimized for high performance.

Understanding NVMe and TCP: A Quick Overview

Before diving into performance specifics, let’s clarify the key technologies involved:

  • NVMe (Non-Volatile Memory Express) is a protocol designed to provide fast data access to storage media by leveraging the high-speed PCIe (Peripheral Component Interconnect Express) bus. NVMe reduces latency, improves throughput, and enhances overall storage performance compared to legacy storage like SATA and SAS, while maintaining a price point that is at most slightly increased on a $/TB basis. Comparatively speaking, when concerned with performance, scale and throughput, NVMe drives are the clear cost-performer in this arena.

  • TCP/IP (Transmission Control Protocol/Internet Protocol) is one of the pillars of modern networking. It is a reliable, connection-oriented protocol that ensures data is transmitted correctly across networks. TCP is known for its robustness and widespread use, making it an attractive option for connecting NVMe devices over long distances and in cloud environments.

Ceph brings NVMe over TCP to market offering NVMe speed and low latency access to networked storage solutions, without the need for specialized hardware like Fibre Channel, InfiniBand or RDMA.

NVMe over TCP Performance: What to Expect

The performance of NVMe over TCP largely depends on the underlying network infrastructure, storage architecture and design, and the workload being handled. However, there are a few key factors to keep in mind:

  1. Latency and Throughput: NVMe is designed to minimize latency, and this benefit carries over into NVMe over TCP. While TCP itself introduces some latency due to its connection management features (compared to lower-latency protocols like RDMA), NVMe over TCP still offers significantly better latency than traditional network storage protocols. Notable regarding Ceph: at scale there is a clear tradeoff between latency and throughput, as you will see in this article. As the limits of performance are pushed for a defined architecture, Ceph doesn’t falter or fail, we simply see an increase in latency when serving higher demand in throughput. This is highly important to keep in mind when designing for both IOPS and Latency for any given workload.
  2. Network Congestion and Packet Loss: TCP is known for its reliability in the face of network congestion and packet loss, thanks to its built-in error correction and retransmission mechanisms. However, these features can sometimes introduce performance bottlenecks, especially in environments with high traffic or unreliable network connections. For example, if the network becomes congested, TCP's flow control mechanisms may throttle performance to ensure data integrity. To mitigate this, businesses often deploy Quality of Service (QoS) and Class of Service (CoS) mechanisms to fine-tune network parameters and ensure smooth data transmission.
  3. CPU Overhead: While NVMe over TCP eliminates the need for specialized hardware, it can introduce some CPU overhead due to the protocol processing required by the TCP/IP stack. NVMe/TCP requires more from the CPU, where storage workload processing happens. However, we do see performance benefits in scaling CPU cores consumed with increased workload demand, thus driving down latency and enhancing throughput.
  4. Optimization and Tuning: To get the best performance from NVMe over TCP, network administrators often need to fine-tune several parameters, including TCP window size, buffer sizes, and congestion control settings. With optimizations such as TCP offloading and TCP/UDP-based congestion control, the performance of NVMe over TCP can be enhanced to better meet the needs of demanding workloads. For Ceph we can dive deeper into software parameters that, when sized for your hardware platform, can maximize performance without additional cost or hardware complexity.

Definitions

Let’s define some important terms in the Ceph world to ensure that we see which parameters can move the needle for performance and scale.

OSD (Object Storage Daemon) is the object storage daemon for the Ceph software defined storage system. It manages data on physical storage drives with redundancy and provides access to that data over the network. For the purposes of this article, we can state that an OSD is the software service that manages disk IO for a given physical device.

Reactor / Reactor Core: this is an event handling model in software development that comprises an event loop running a single thread which handles IO requests for NVMe/TCP. By default, we begin with 4 reactor core threads, but this model is tunable via software parameters.

BDevs_per_cluster: BDev is short for Block Device, this driver is how the NVMe Gateways talk to Ceph RBD images. This is important because by default the NVMe/TCP Gateway leverages 32 BDevs in a single cluster context per librbd client (bdevs_per_cluster=32), or storage client connecting to the underlying volume. This tunable parameter can be adjusted to provide scaling all the way to a 1:1 context for NVMe volume to librbd client, creating an uncontested path to performance for a given volume at the expense of more compute resources.

Performance

Starting off strong, below we see how adding drives (OSDs) and nodes to a Ceph cluster can increase IO performance across the board. A 4-node Ceph cluster with 24 drives per node can provide over 450,000 IOPS with a 70:30 read/write profile, using a 16k block size with 32 FIO clients. That’s over 100K IOPS average per node! This trend scales linearly as nodes and drives are added, showing a top-end of nearly 1,000,000 IOPS with a 12 node, 288 OSD cluster. It is noteworthy that the higher end numbers are shown with 12 reactors and 1 librbd client per namespace (bdevs_per_cluster=1), which demonstrates how the addition of librbd clients enables more throughput to the OSDs serving the underlying RBD images and their mapped NVMe namespaces.

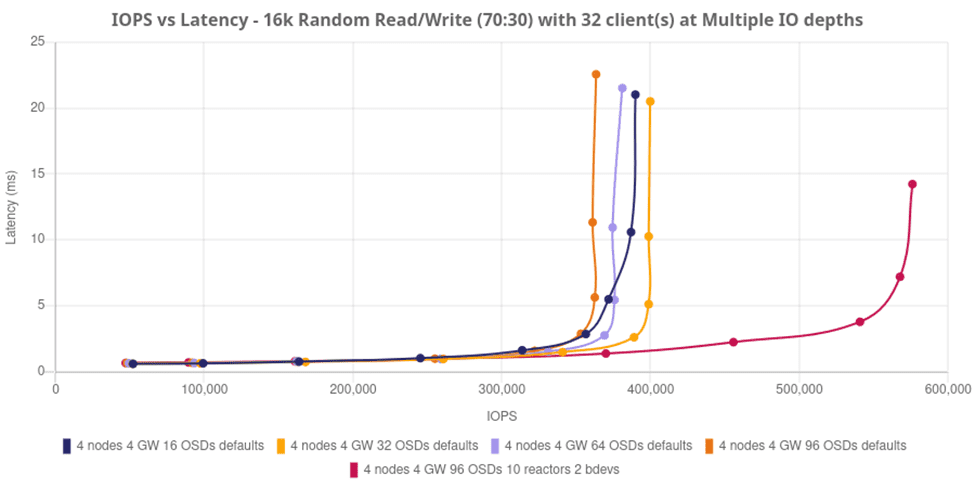

The next test below shows how tuning an environment to the underlying hardware can show massive improvements in software defined storage. We begin with a simple 4-node cluster, and show scale points of 16, 32, 64 and 96 OSDs. In this test the Ceph Object Storage Daemons have been mapped 1:1 directly to physical NVMe drives.

It may seem like adding drives and nodes alone only gains a modicum of performance, but with software defined storage there is always a trade-off between server utilization and storage performance – in this case for the better. When the same cluster has the default reactor cores increased from 4 to 10 (thus consuming more CPU cycles), and ``bdevs_per_cluster` is configured to increase software throughput via the addition of librbd clients, the performance nearly doubles. All this by simply tuning your environment to the underlying hardware and enabling Ceph to take advantage of this processing power.

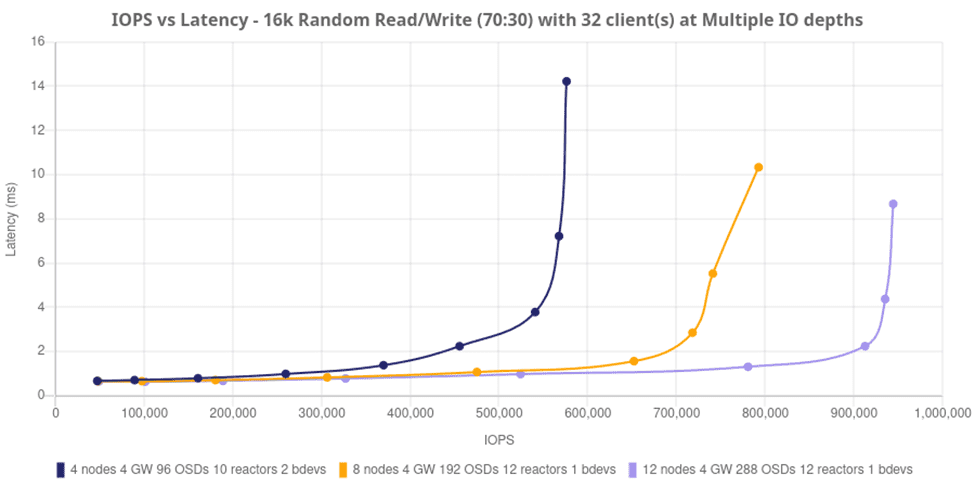

The chart below shows the IOPS delivered at the three “t-shirt” sizes of tuned 4-node, 8-node and 12-node configurations, and a 4-node cluster with the defaults enabled for comparison. Again we see that, for <2ms latency workloads, Ceph scales linearly and in a dependable, expectable fashion. Note: as I/O becomes congested, at a certain point the workloads are still serviceable but with higher latency response times. Ceph continues to commit the required reads and writes, only plateauing once the existing platform design boundaries become saturated.

The Future of NVMe over TCP

As storage needs continue to evolve, NVMe over TCP is positioned to become a key player in the high-performance storage landscape. With continued advancements in Ethernet speeds, TCP optimizations, and network infrastructure, NVMe over TCP will continue to offer compelling advantages for a wide range of applications, from enterprise data centers to edge computing environments.

Ceph is positioned to be the top performer in software defined storage for NVMe over TCP, by enabling not only high-performance, scale-out NVMe storage platforms, but also by enabling more performance on platform by user-controlled software enhancements and configuration.

Conclusion

Ceph’s NVMe over TCP Target offers a powerful, scalable, and cost-effective solution for high-performance storage networks.

The authors would like to thank IBM for supporting the community by through our time to create these posts.
