Performance investigation on the Ceph Crimson OSD CPU core allocation. Part One

cyan_8osd_5reactor_8fio_bal_osd_rc_1procs_randread.zip      cyan_8osd_5reactor_8fio_bal_socket_rc_1procs_seqread.zip   cyan_8osd_6reactor_8fio_bal_osd_rc_1procs_randread.zip      cyan_8osd_6reactor_8fio_bal_socket_rc_1procs_seqread.zip
cyan_8osd_5reactor_8fio_bal_osd_rc_1procs_randwrite.zip     cyan_8osd_5reactor_8fio_bal_socket_rc_1procs_seqwrite.zip  cyan_8osd_6reactor_8fio_bal_osd_rc_1procs_randwrite.zip     cyan_8osd_6reactor_8fio_bal_socket_rc_1procs_seqwrite.zip
cyan_8osd_5reactor_8fio_bal_osd_rc_1procs_seqread.zip

• cyan_8osd_5reactor_8fio_bal_osd_rc_1procs_randread.json: the (combined) FIO output file, which contains the I/O throughput and latency measurements. It contains integrated the CPU and MEM utilisation from the OSD process as well.
  • cyan_8osd_5reactor_8fio_bal_osd_rc_1procs_randread_cpu_avg.json: the OSD and FIO CPU and MEM utilisation averages. These have been collected from the OSD process and the FIO client process via top (30 samples over 5 minutes).
  • cyan_8osd_5reactor_8fio_bal_osd_rc_1procs_randread_diskstat.json: the diskstat output. A sample is taken before and after the test, the .json contains the differences.
  • cyan_8osd_5reactor_8fio_bal_osd_rc_1procs_randread_top.json: the output from top, parsed via jc to produce a .json. Note: jc does not yet support individual CPU core utilisation, so we have to rely on the overall CPU utilisation (per thread).
  • new_cluster_dump.json: the output from ceph tell ${osd_i} dump_metrics command, which contains the individual OSD performance metrics.
  • FIO_cyan_8osd_5reactor_8fio_bal_osd_rc_1procs_randread_top_cpu.plot: the plot mechanically generated from the top output, showing the CPU utilisation over time for the FIO client.
  • OSD_cyan_8osd_5reactor_8fio_bal_osd_rc_1procs_randread_top_mem.plot: the plot mechanically generated from the top output, showing the MEM utilisation over time for the OSD process.

We take a measurement of the diskstats before and after the test, and we use the diskstat_diff.py script to calculate the difference. The script is available in the ceph repository under src/tools/contrib.

# jc --pretty /proc/diskstats > /tmp/blue_8osd_6reactor_192at_8fio_socket_cond.json
# fio rbd_fio_examples/randwrite64k.fio && jc --pretty /proc/diskstats \
 | python3 diskstat_diff.py -d /tmp/ -a blue_8osd_6reactor_192at_8fio_socket_cond.json

Jobs: 8 (f=8): [w(8)][30.5%][w=24.3GiB/s][w=398k IOPS][eta 13m:41s]
nvme0n1p2: (groupid=0, jobs=8): err= 0: pid=375444: Fri Jan 31 11:43:35 2025
  write: IOPS=397k, BW=24.2GiB/s (26.0GB/s)(8742GiB/360796msec); 0 zone resets
    slat (nsec): min=1543, max=823010, avg=5969.62, stdev=2226.84
    clat (usec): min=57, max=50322, avg=5152.50, stdev=2982.28
     lat (usec): min=70, max=50328, avg=5158.47, stdev=2982.27
    clat percentiles (usec):
     |  1.00th=[  281],  5.00th=[  594], 10.00th=[ 1037], 20.00th=[ 2008],
     | 30.00th=[ 3032], 40.00th=[ 4080], 50.00th=[ 5145], 60.00th=[ 6194],
     | 70.00th=[ 7242], 80.00th=[ 8291], 90.00th=[ 9241], 95.00th=[ 9634],
     | 99.00th=[10028], 99.50th=[10421], 99.90th=[14091], 99.95th=[16188],
     | 99.99th=[19268]
   bw (  MiB/s): min=15227, max=24971, per=100.00%, avg=24845.68, stdev=88.47, samples=5768
   iops        : min=243638, max=399547, avg=397527.12, stdev=1415.43, samples=5768
  lat (usec)   : 100=0.01%, 250=0.61%, 500=3.18%, 750=2.90%, 1000=2.88%
  lat (msec)   : 2=10.28%, 4=19.25%, 10=59.90%, 20=1.00%, 50=0.01%
  lat (msec)   : 100=0.01%
  cpu          : usr=19.80%, sys=15.60%, ctx=104026691, majf=0, minf=2647
  IO depths    : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.1%, >=64=100.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.1%
     issued rwts: total=0,143224767,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=256
  steadystate  : attained=yes, bw=24.3GiB/s (25.5GB/s), iops=398k, iops mean dev=1.215%

Run status group 0 (all jobs):
  WRITE: bw=24.2GiB/s (26.0GB/s), 24.2GiB/s-24.2GiB/s (26.0GB/s-26.0GB/s), io=8742GiB (9386GB), run=360796-360796msec

# CPU allocation strategies
declare -A bal_ops_table
bal_ops_table["default"]=""
bal_ops_table["bal_osd"]=" --crimson-balance-cpu osd"
bal_ops_table["bal_socket"]="--crimson-balance-cpu socket"

We essentially traverse over the order of the CPU strategies, for each of the Crimson backends. In the snippet, we iterate over the number of OSDs and reactors, and set the CPU allocation strategy with the new option.

IMPORTANT: Notice that we set the list of CPU cores available for vstart with the VSTART_CPU_CORES variable. We use this to ensure we "reserve" some CPUs to be used by the FIO client (since we are using a single node cluster).

# Run balanced vs default CPU core/reactor distribution in Crimson using either Cyan, Seastore or  Bluestore
fun_run_bal_vs_default_tests() {
  local OSD_TYPE=$1
  local NUM_ALIEN_THREADS=7 # default
  local title=""

  for KEY in default bal_osd bal_socket; do
    for NUM_OSD in 8; do
      for NUM_REACTORS in 5 6; do
        title="(${OSD_TYPE}) $NUM_OSD OSD crimson, $NUM_REACTORS reactor, fixed FIO 8 cores, response latency "

        cmd="MDS=0 MON=1 OSD=${NUM_OSD} MGR=1 taskset -ac '${VSTART_CPU_CORES}' /ceph/src/vstart.sh \
 --new -x --localhost --without-dashboard\
 --redirect-output ${crimson_be_table[${OSD_TYPE}]} --crimson --crimson-smp ${NUM_REACTORS}\
 --no-restart ${bal_ops_table[${KEY}]}"
        # Alien setup for Bluestore, see below.

        test_name="${OSD_TYPE}_${NUM_OSD}osd_${NUM_REACTORS}reactor_8fio_${KEY}_rc"
        echo "${cmd}"  | tee >> ${RUN_DIR}/${test_name}_cpu_distro.log
        echo $test_name
        eval "$cmd" >> ${RUN_DIR}/${test_name}_cpu_distro.log
        echo "Sleeping for 20 secs..."

        sleep 20

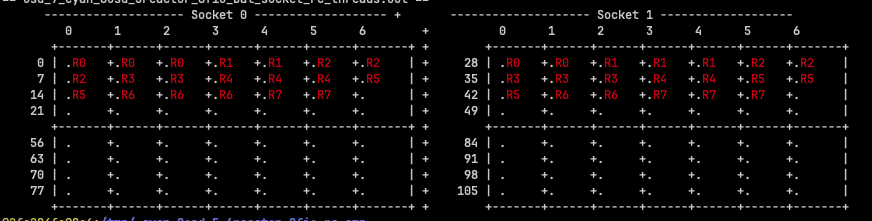

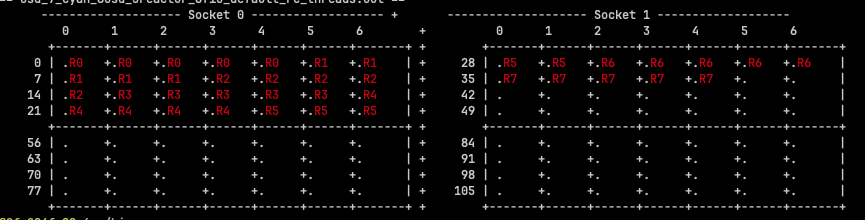

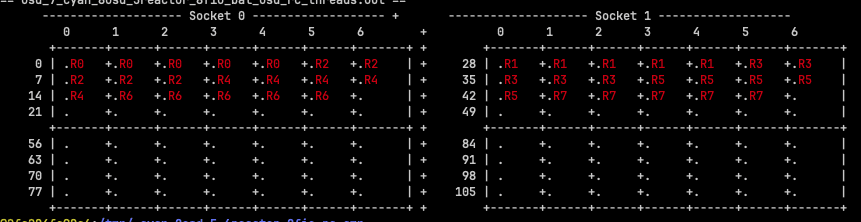

        fun_show_grid $test_name
        fun_run_fio $test_name
        /ceph/src/stop.sh --crimson
        sleep 60
      done
    done
  done
}

For Bluestore, we have a special case, where we set the number of alien threads to be 4 times the number of backend CPU cores (crimson-smp).

        if [ "$OSD_TYPE" == "blue" ]; then
            NUM_ALIEN_THREADS=$(( 4 *NUM_OSD * NUM_REACTORS ))
            title="${title} alien_num_threads=${NUM_ALIEN_THREADS}"
            cmd="${cmd}  --crimson-alien-num-threads $NUM_ALIEN_THREADS"
            test_name="${OSD_TYPE}_${NUM_OSD}osd_${NUM_REACTORS}reactor_${NUM_ALIEN_THREADS}at_8fio_${KEY}_rc"
        fi

We first take some measurements of the cluster, then we create a single RBD pool and volume(s) as appropriate. We also show the status of the cluster, the pools and the PGs.

# Take some measurements
if pgrep crimson; then
	bin/ceph daemon -c /ceph/build/ceph.conf osd.0 dump_metrics > /tmp/new_cluster_dump.json
else
	bin/ceph daemon -c /ceph/build/ceph.conf osd.0 perf dump > /tmp/new_cluster_dump.json
fi

# Create the pools
bin/ceph osd pool create rbd
bin/ceph osd pool application enable rbd rbd
[ -z "$NUM_RBD_IMAGES" ] && NUM_RBD_IMAGES=1
for (( i=0; i<$NUM_RBD_IMAGES; i++ )); do
  bin/rbd create --size ${RBD_SIZE} rbd/fio_test_${i}
  rbd du fio_test_${i}
done
bin/ceph status
bin/ceph osd dump | grep 'replicated size'
# Show a pool’s utilization statistics:
rados df
# Turn off auto scaler for existing and new pools - stops PGs being split/merged
bin/ceph osd pool set noautoscale
# Turn off balancer to avoid moving PGs
bin/ceph balancer off
# Turn off deep scrub
bin/ceph osd set nodeep-scrub
# Turn off scrub
bin/ceph osd set noscrub

Here is an example of the default pools shown after the cluster has been created. Notice the default replica set as Crimson does not support Erasure Coding yet.

    pool 'rbd' created
enabled application 'rbd' on pool 'rbd'
NAME        PROVISIONED  USED
fio_test_0       10 GiB   0 B
  cluster:
    id:     da51b911-7229-4eae-afb5-a9833b978a68
    health: HEALTH_OK

  services:
    mon: 1 daemons, quorum a (age 97s)
    mgr: x(active, since 94s)
    osd: 8 osds: 8 up (since 52s), 8 in (since 60s)

  data:
    pools:   2 pools, 33 pgs
    objects: 2 objects, 449 KiB
    usage:   214 MiB used, 57 TiB / 57 TiB avail
    pgs:     27.273% pgs unknown
             21.212% pgs not active
             17 active+clean
             9  unknown
             7  creating+peering

pool 1 '.mgr' replicated size 3 min_size 1 crush_rule 0 object_hash rjenkins pg_num 1 pgp_num 1 autoscale_mode off last_change 15 flags hashpspool,nopgchange,crimson stripe_width 0 pg_num_max 32 pg_num_min 1 application mgr read_balance_score 7.89
pool 2 'rbd' replicated size 3 min_size 1 crush_rule 0 object_hash rjenkins pg_num 32 pgp_num 32 autoscale_mode off last_change 33 flags hashpspool,nopgchange,selfmanaged_snaps,crimson stripe_width 0 application rbd read_balance_score 1.50
POOL_NAME     USED  OBJECTS  CLONES  COPIES  MISSING_ON_PRIMARY  UNFOUND  DEGRADED  RD_OPS      RD  WR_OPS       WR  USED COMPR  UNDER COMPR
.mgr       449 KiB        2       0       6                   0        0         0      41  35 KiB      55  584 KiB         0 B          0 B
rbd            0 B        0       0       0                   0        0         0       0     0 B       0      0 B         0 B          0 B

total_objects    2
total_used       214 MiB
total_avail      57 TiB
total_space      57 TiB
noautoscale is set, all pools now have autoscale off
nodeep-scrub is set
noscrub is set

• We use the iodepth option to control the number of I/O requests that are issued to the device. Since we are interested in response latency curves (a.k.a hockey stick performance curves) we traverse from one to sixty four. We use a single job per RBD volume (but this could also be variable if required).

# Option -w (WORKLOAD) is used as index for these:
declare -A m_s_iodepth=( [hockey]="1 2 4 8 16 24 32 40 52 64"  ...)
declare -A m_s_numjobs=( [hockey]="1" ... )

• As a preliminary step, we prime the volume(s) with a write workload. This is done before the actual performance tests are run. We exercise a client per volume, so the execution is concurrent.

# Prime the volume(s) with a write workloads
   RBD_NAME=fio_test_$i RBD_SIZE="64k" fio ${FIO_JOBS}rbd_prime.fio 2>&1 >/dev/null &
   echo "== priming $RBD_NAME ==";
 ...
   wait;

• In the main loop, we iterate over the number of I/O depths, and we run the FIO command for each of the predefined workloads. We also take a snapshot of the diskstats before and after the test, and we calculate the difference. We collect the PIDs of the FIO process as well as the OSD processes, which would be used to monitor their resource utilisation. We have an heuristic in place to exit early the loops if the standard deviation of the latency disperses too much from the median.

IMPORTANT: the attentive reader would notice the use of the taskset command to bind the FIO client to a set of CPU cores. This is to ensure that the FIO client does not interfere with the reactors of OSD process. The order of execution of the workloads is important to ensure reproducibility.

  for job in $RANGE_NUMJOBS; do
    for io in $RANGE_IODEPTH; do

      # Take diskstats measurements before FIO instances
      jc --pretty /proc/diskstats > ${DISK_STAT}
...
        for (( i=0; i<${NUM_PROCS}; i++ )); do

        export TEST_NAME=${TEST_PREFIX}_${job}job_${io}io_${BLOCK_SIZE_KB}_${map[${WORKLOAD}]}_p${i};
        echo "== $(date) == ($io,$job): ${TEST_NAME} ==";
        echo fio_${TEST_NAME}.json >> ${OSD_TEST_LIST}
        fio_name=${FIO_JOBS}${FIO_JOB_SPEC}${map[${WORKLOAD}]}.fio

          # Execute FIO
          LOG_NAME=${log_name} RBD_NAME=fio_test_${i} IO_DEPTH=${io} NUM_JOBS=${job} \
            taskset -ac ${FIO_CORES} fio ${fio_name} --output=fio_${TEST_NAME}.json \
            --output-format=json 2> fio_${TEST_NAME}.err &
          fio_id["fio_${i}"]=$!
          global_fio_id+=($!)
      done # loop NUM_PROCS
      sleep 30; # ramp up time
...
    fun_measure "${all_pids}" ${top_out_name} ${TOP_OUT_LIST} &
...
      wait;
      # Measure the diskstats after the completion of FIO
      jc --pretty /proc/diskstats | python3 /root/bin/diskstat_diff.py -a ${DISK_STAT}

      # Exit the loops if the latency disperses too much from the median
      if [ "$RESPONSE_CURVE" = true ] && [ "$RC_SKIP_HEURISTIC" = false ]; then
        mop=${mode[${WORKLOAD}]}
        covar=$(jq ".jobs | .[] | .${mop}.clat_ns.stddev/.${mop}.clat_ns.mean < 0.5 and \
          .${mop}.clat_ns.mean/1000000 < ${MAX_LATENCY}" fio_${TEST_NAME}.json)
                  if [ "$covar" != "true" ]; then
                    echo "== Latency std dev too high, exiting loops =="
                    break 2
                  fi
      fi
    done # loop IODEPTH
  done # loop NUM_JOBS

The basic monitoring routine is shown below, which is executed concurrently as FIO progresses.

fun_measure() {
  local PID=$1 #comma separated list of pids
  local TEST_NAME=$2
  local TEST_TOP_OUT_LIST=$3

  top -b -H -1 -p "${PID}" -n ${NUM_SAMPLES} >> ${TEST_NAME}_top.out
  echo "${TEST_NAME}_top.out" >> ${TEST_TOP_OUT_LIST}
}

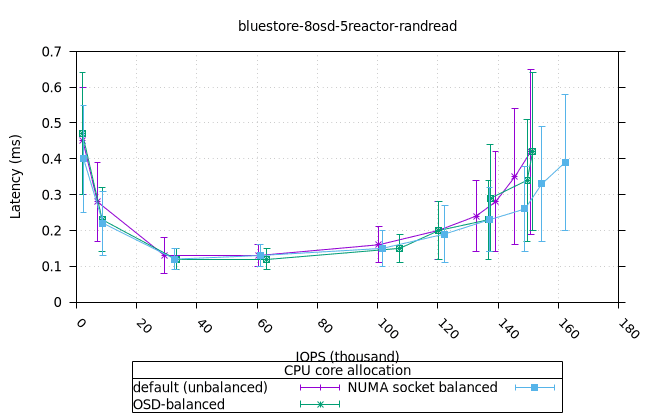

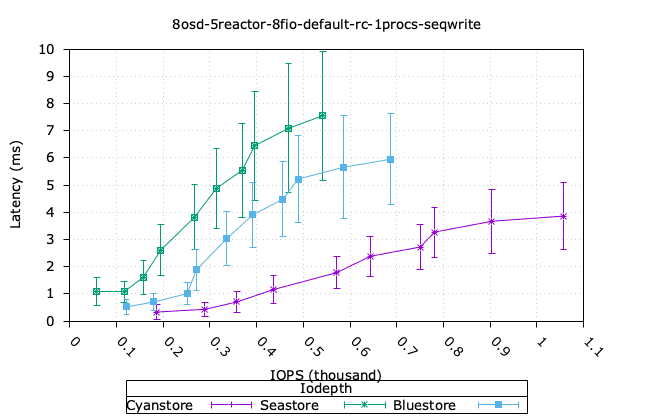

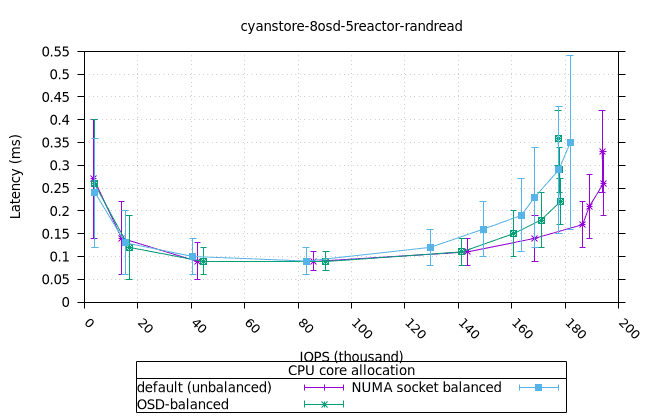

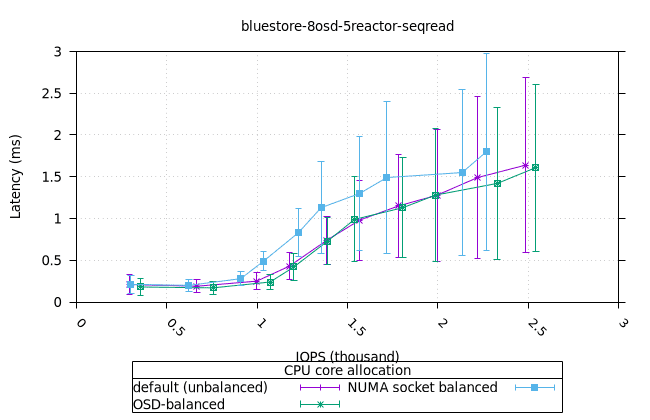

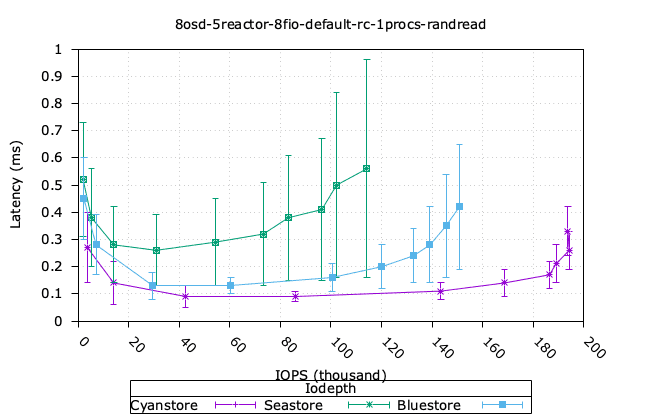

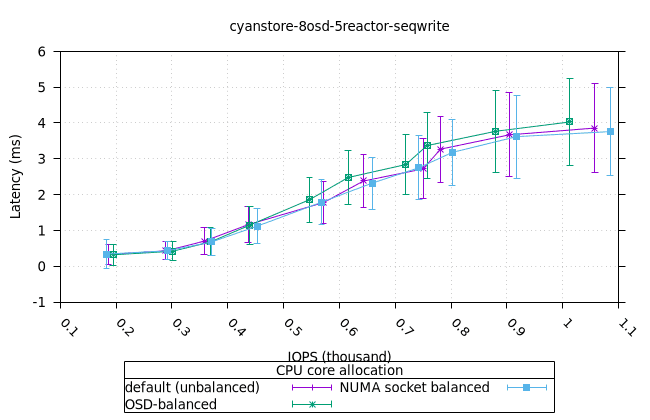

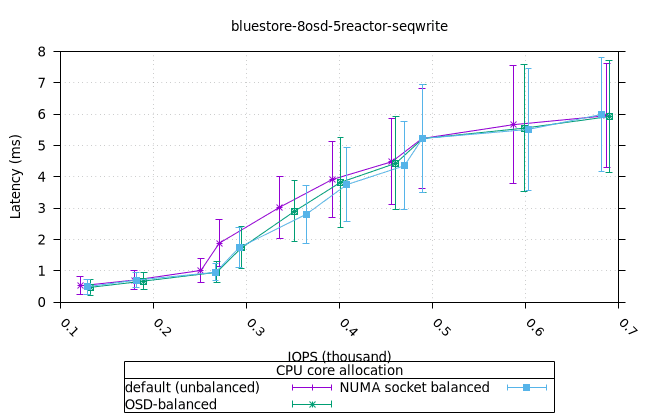

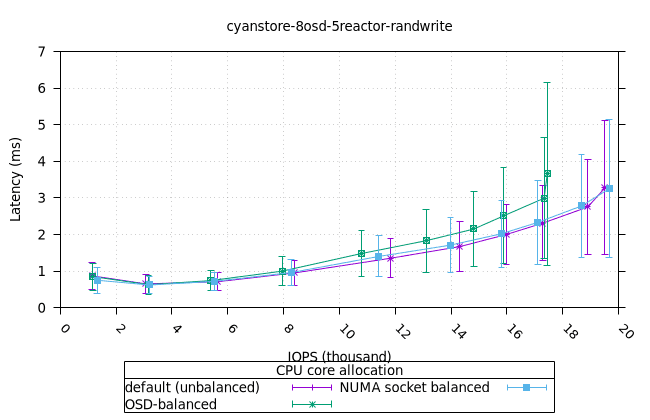

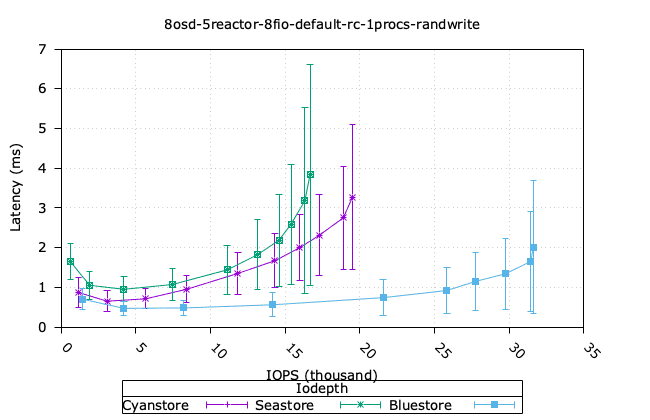

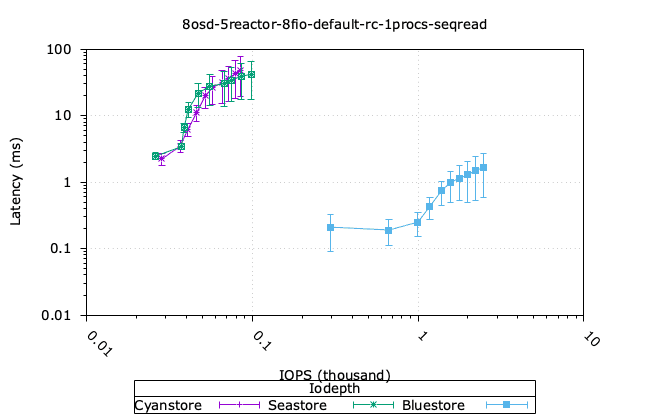

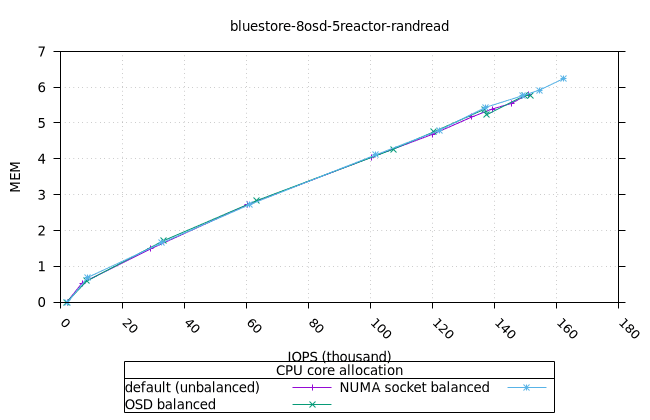

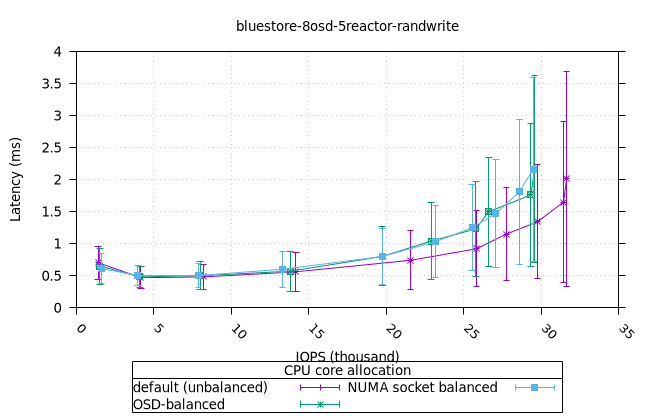

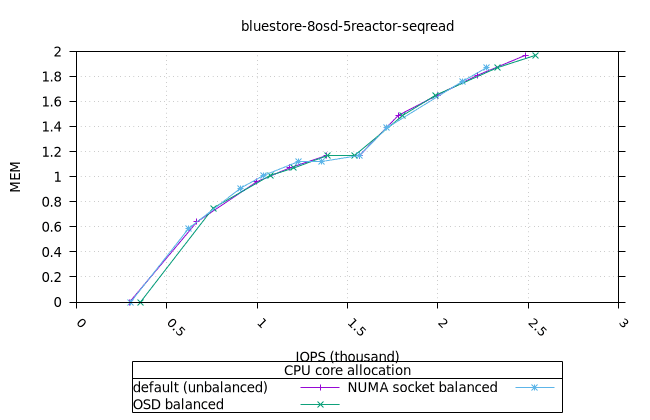

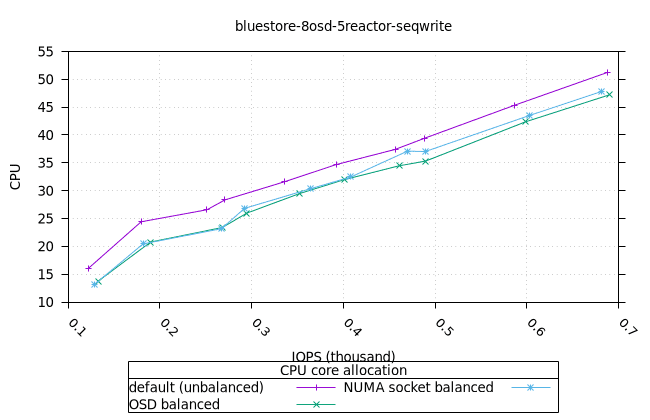

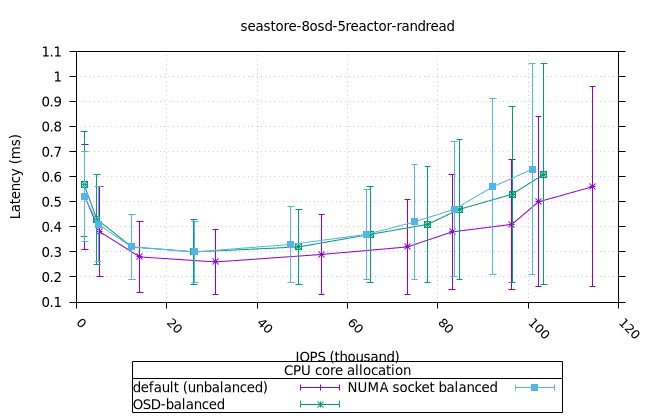

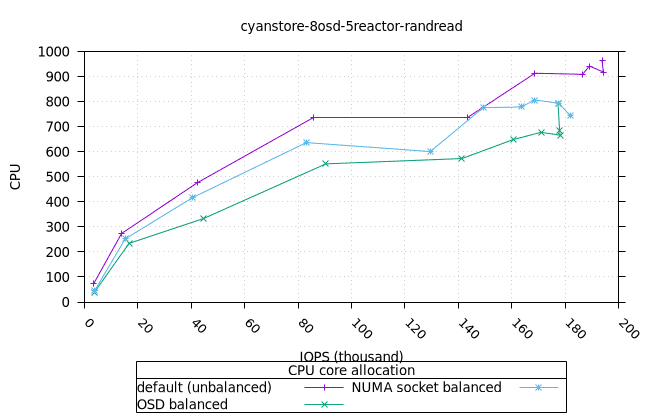

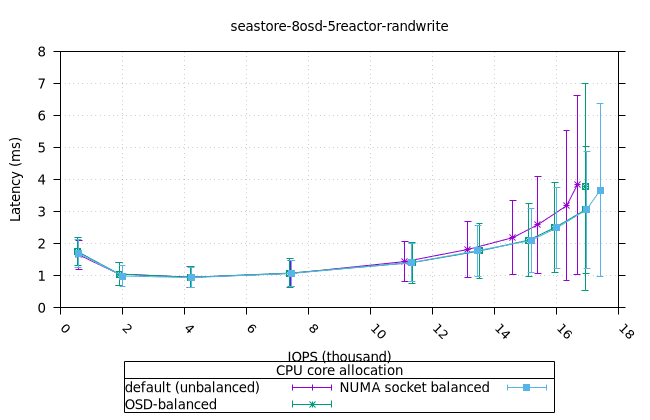

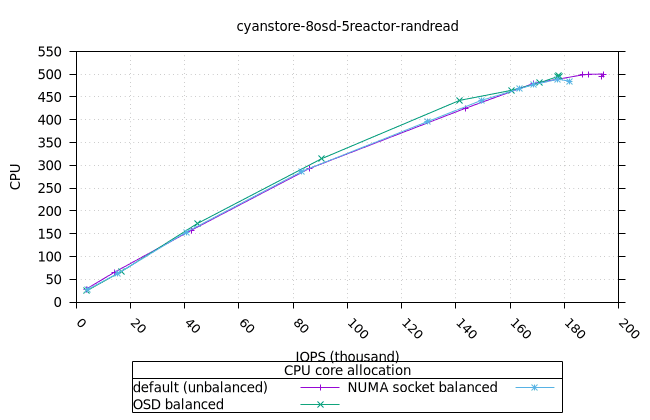

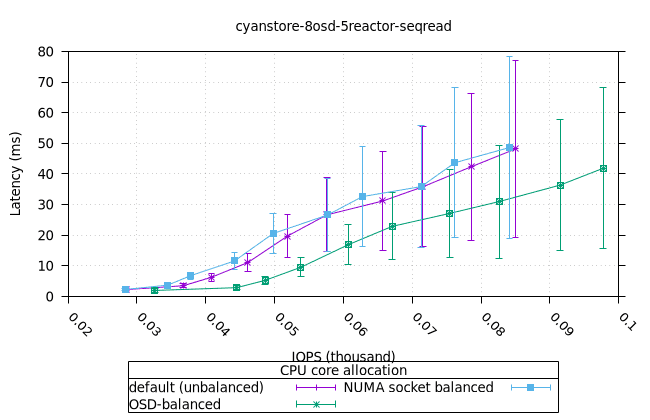

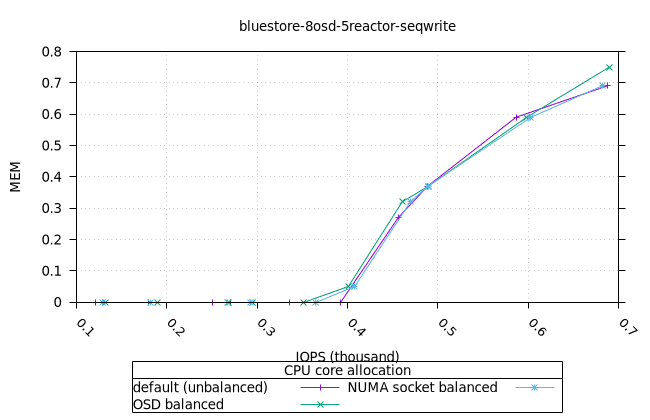

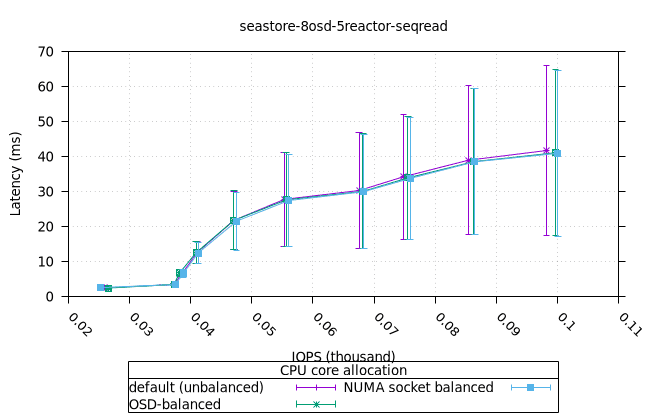

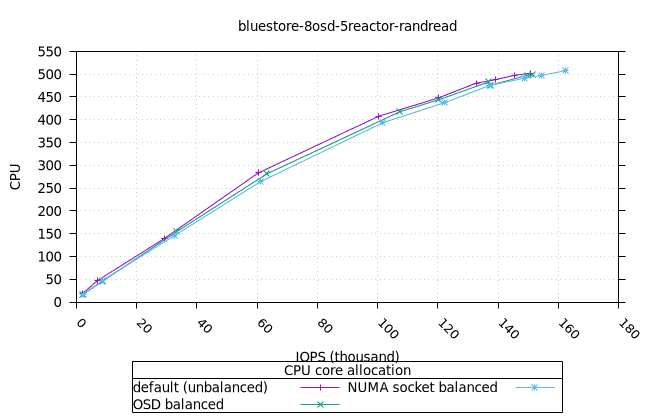

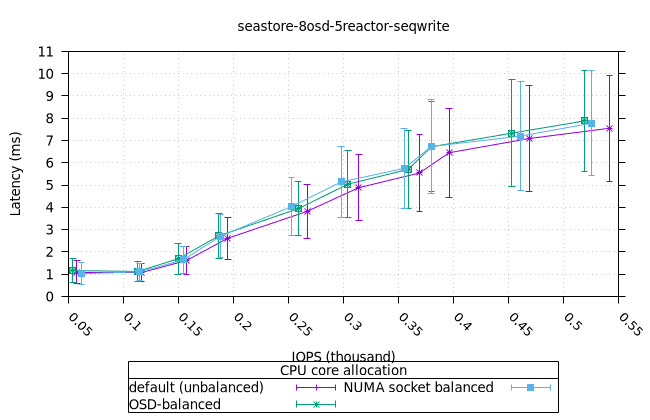

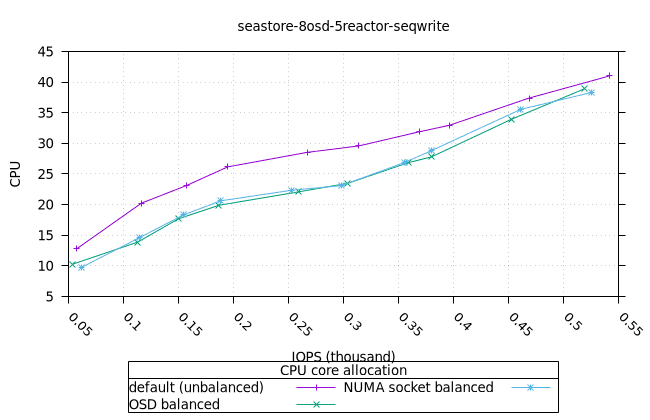

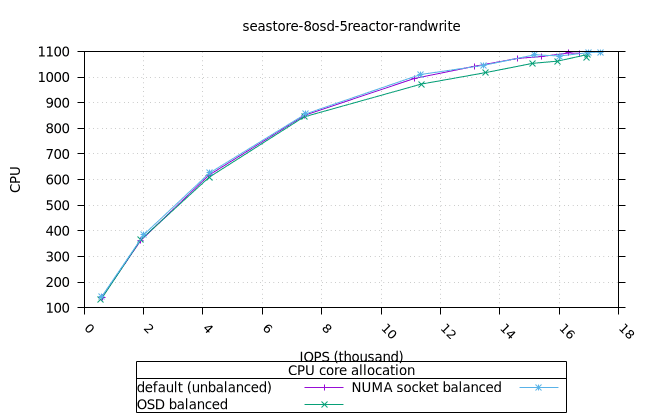

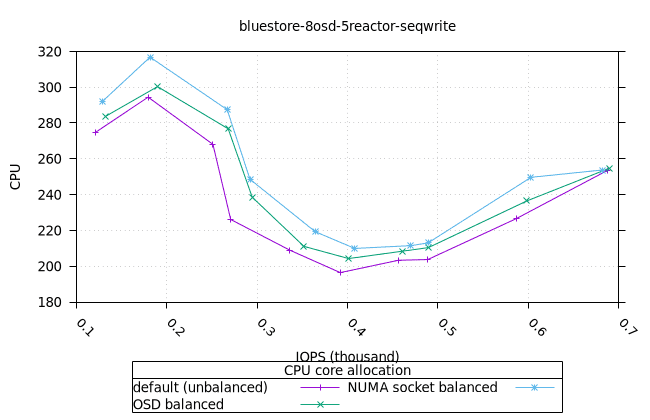

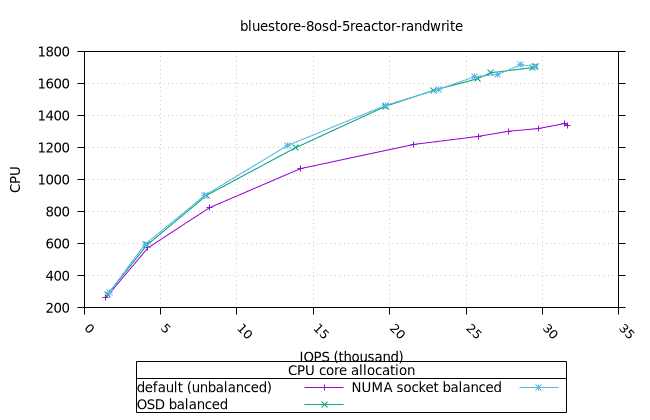

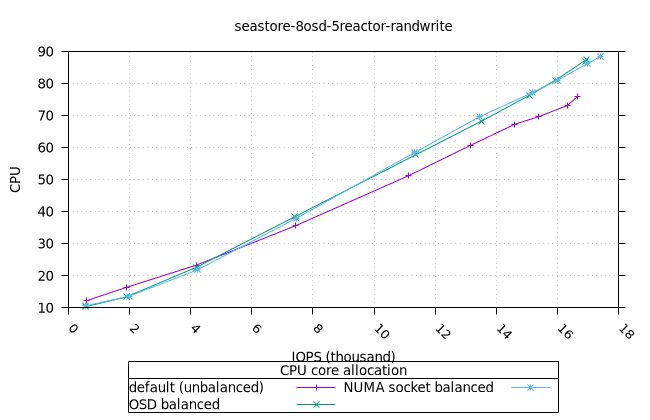

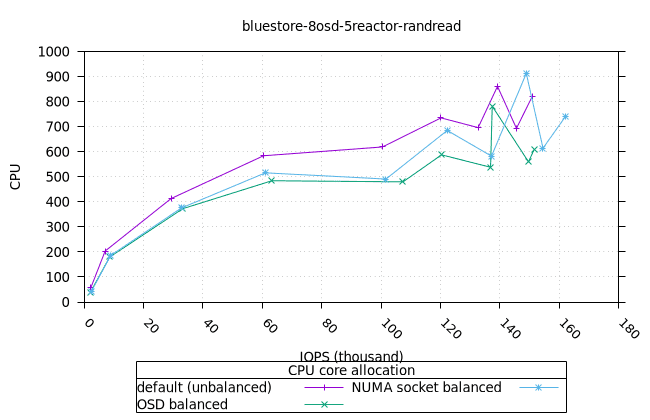

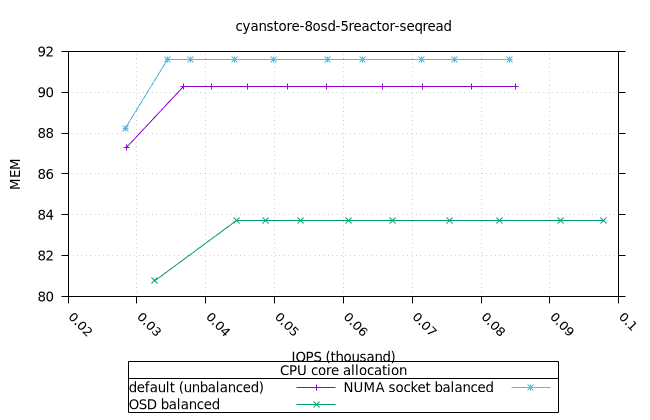

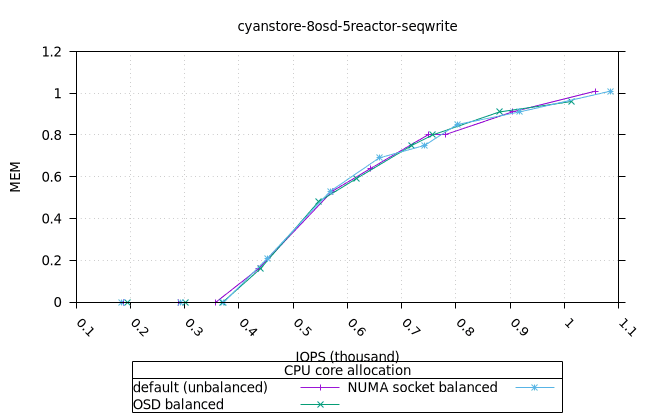

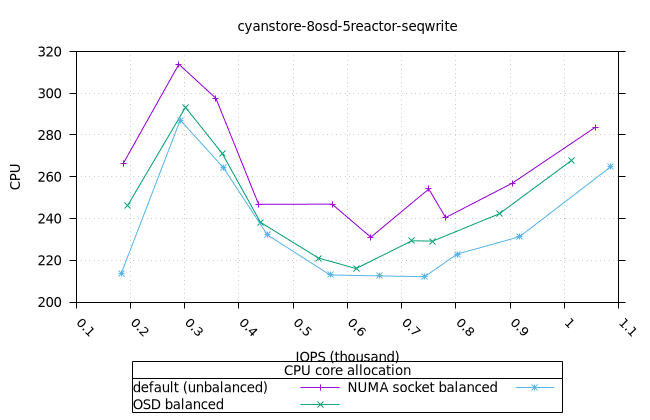

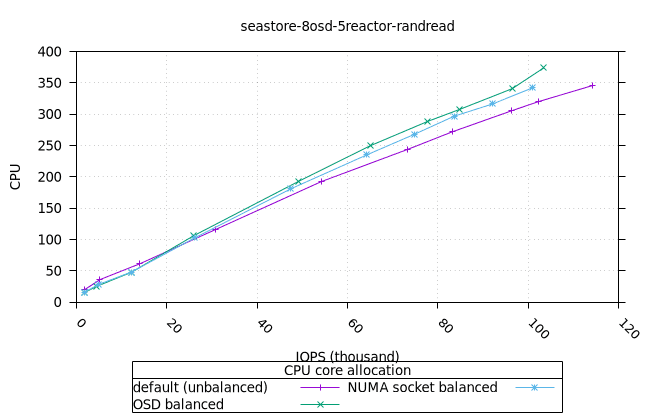

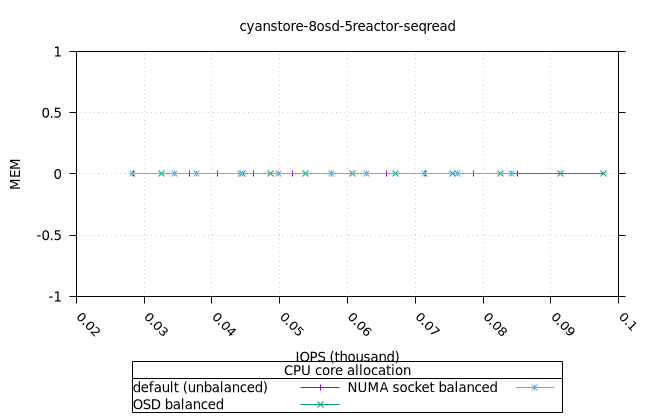

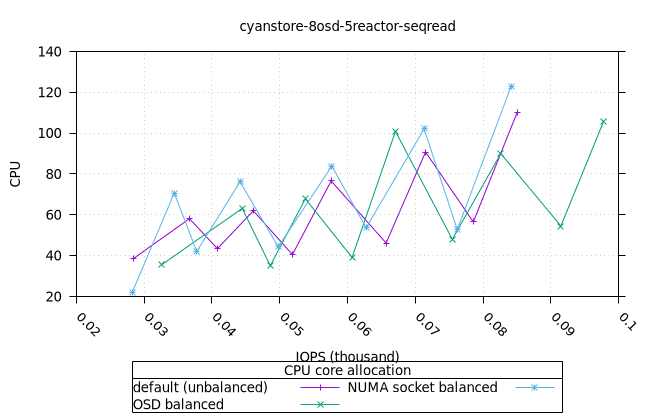

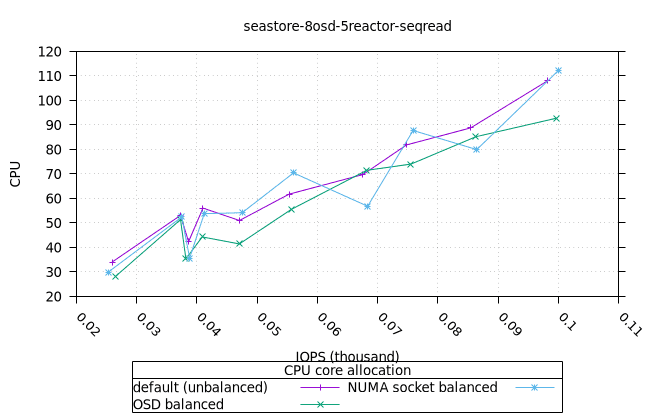

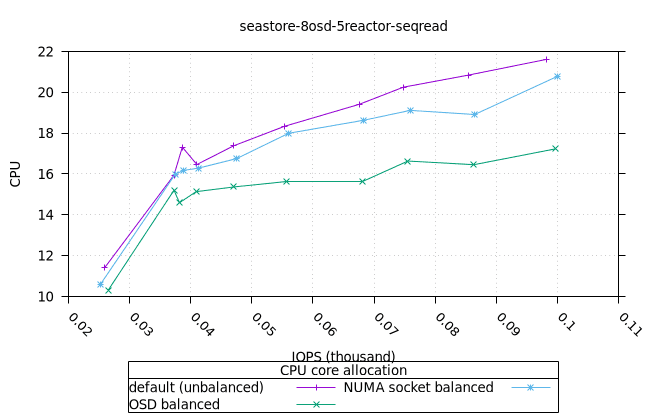

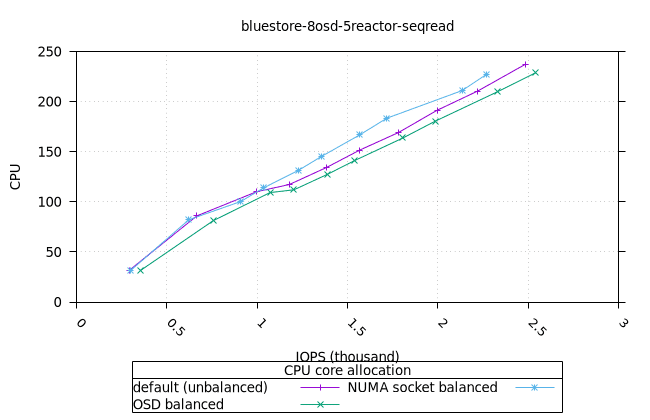

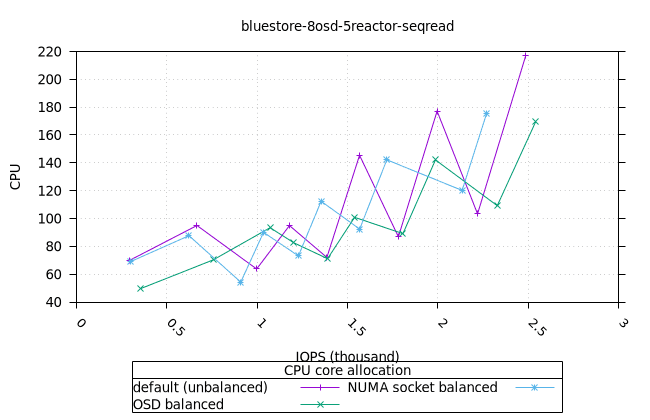

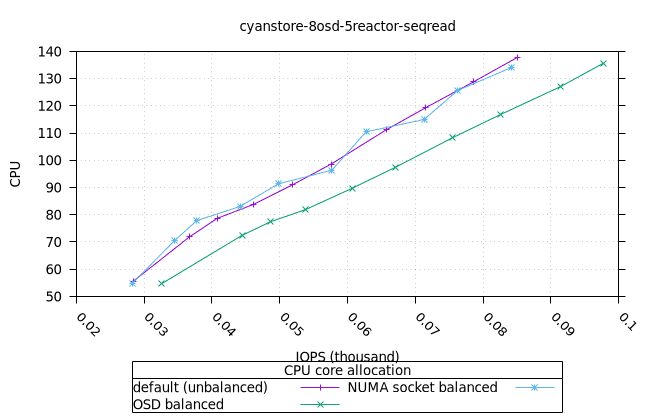

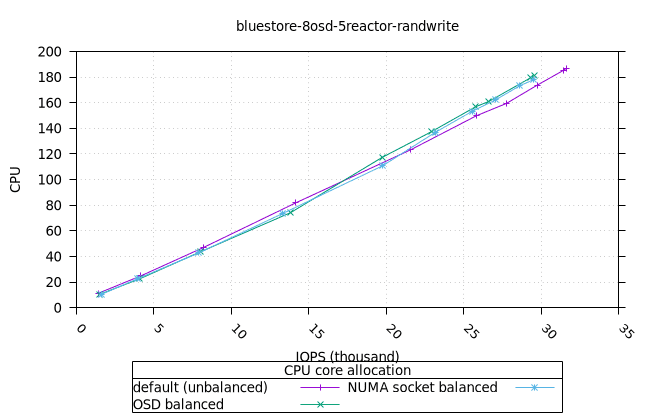

We first show the CPU and MEM utilisation for the OSD process and then the FIO client.

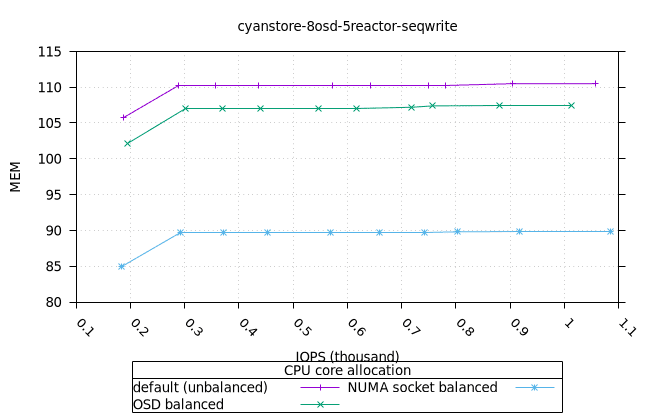

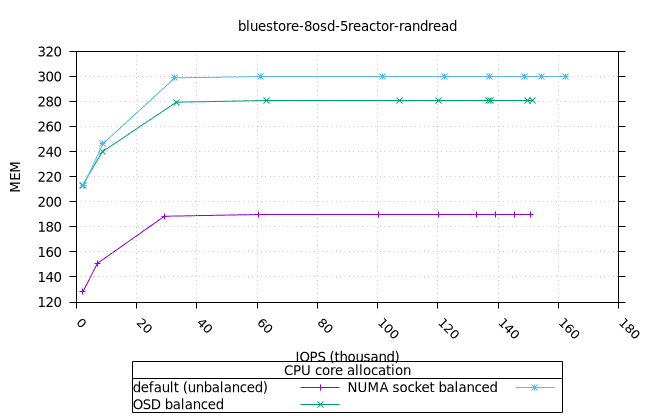

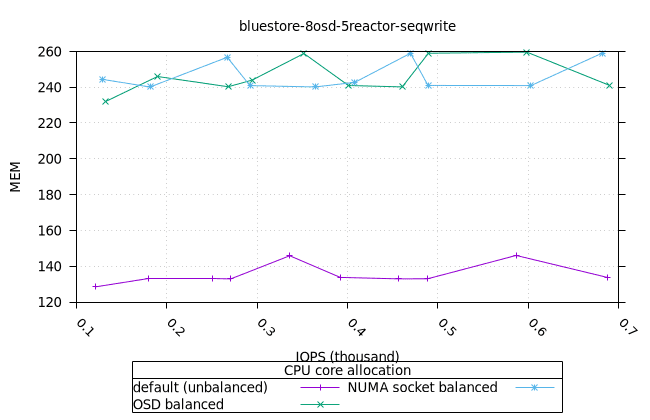

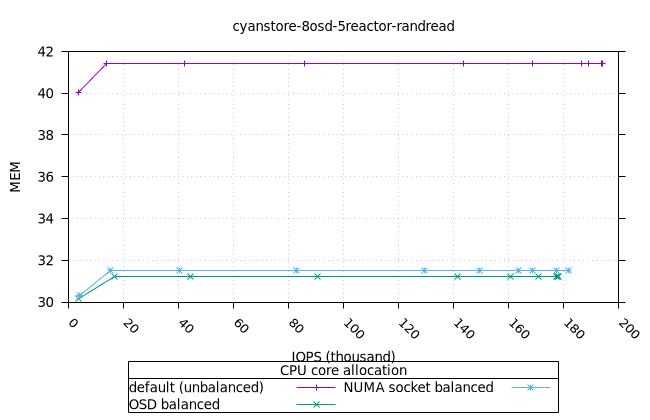

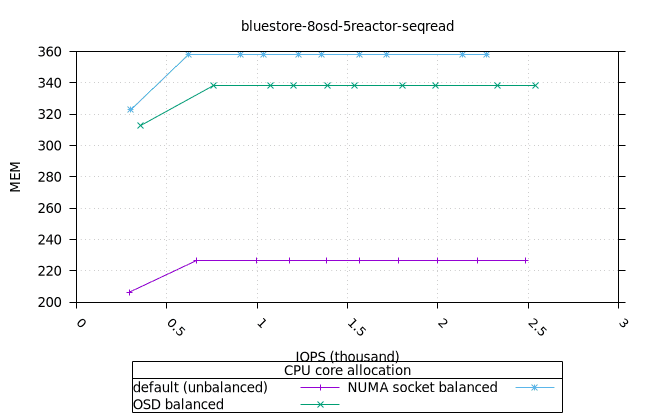

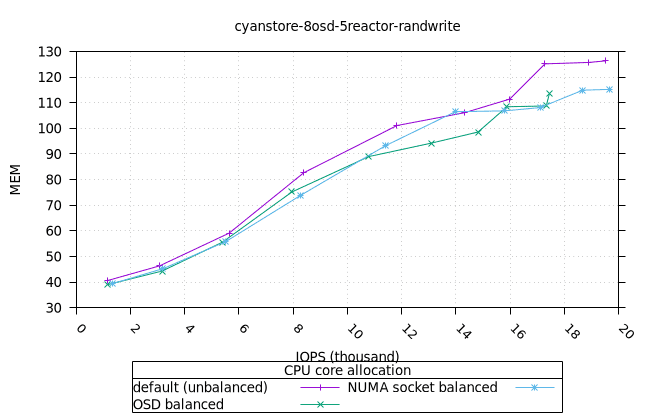

• It is interesting to observe that the default CPU allocation strategy has a higher memory utilisation than the balanced CPU allocation strategies, but only for Cyanstore, so it should not be an issue of concern.

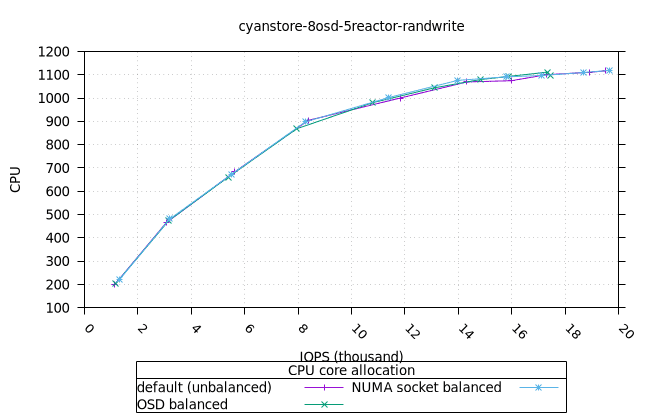

OSD CPU	OSD MEM

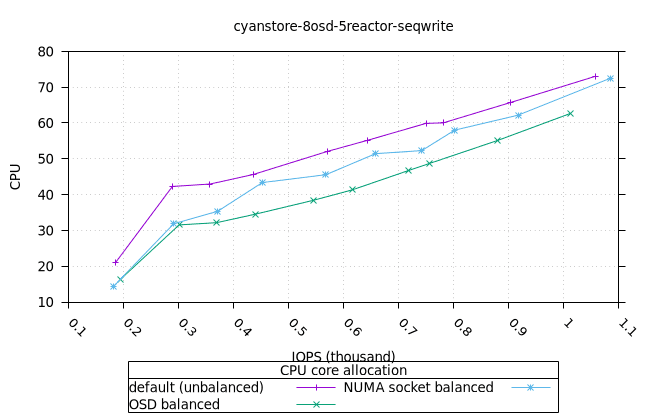

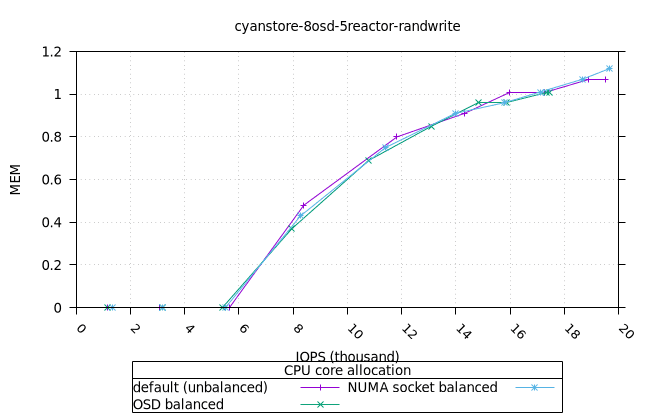

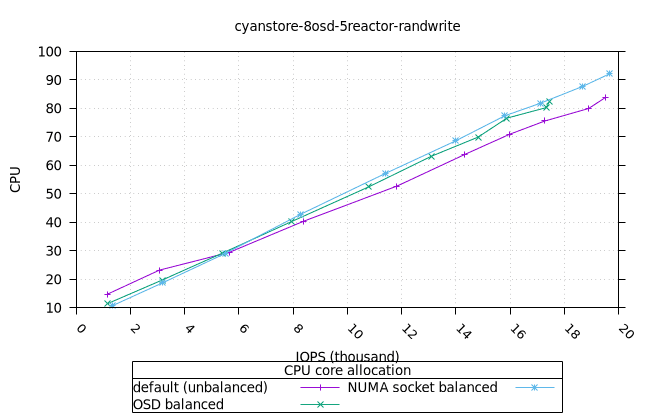

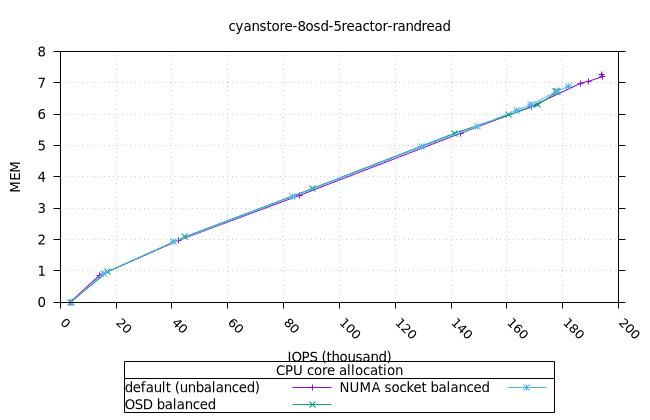

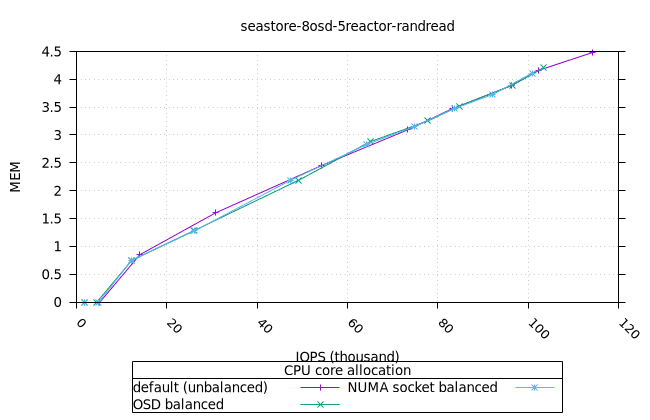

FIO CPU	FIO MEM

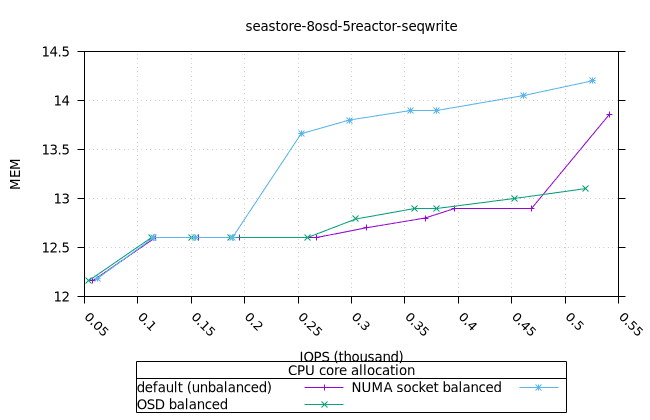

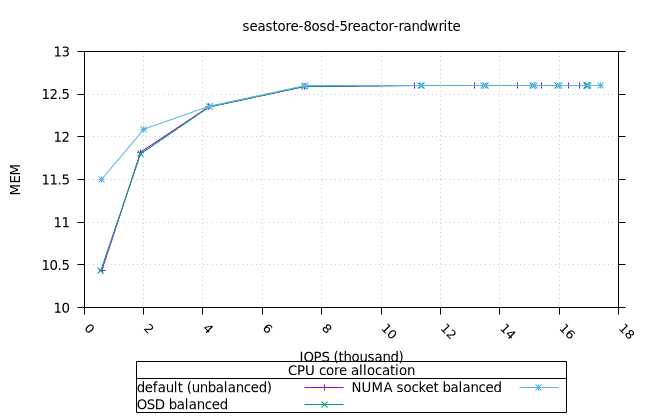

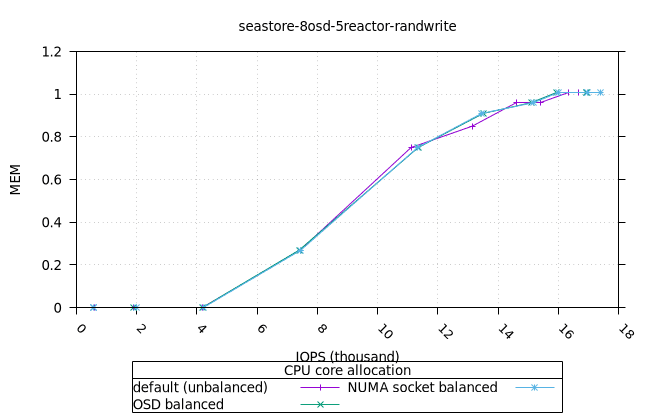

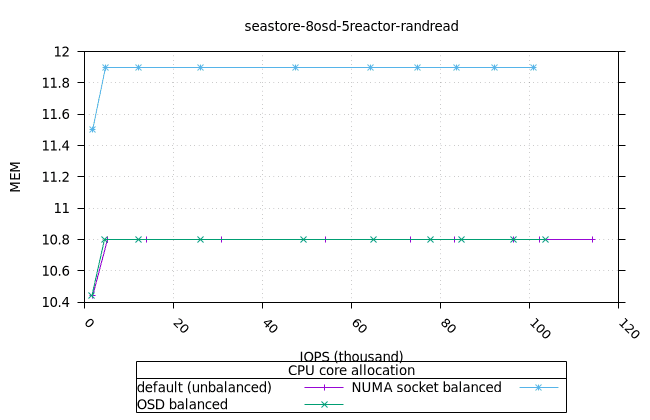

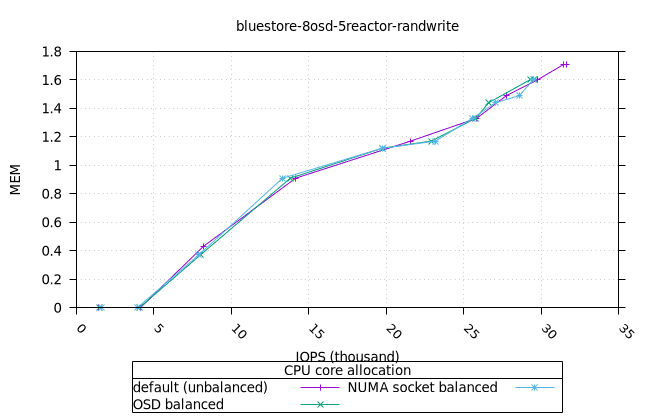

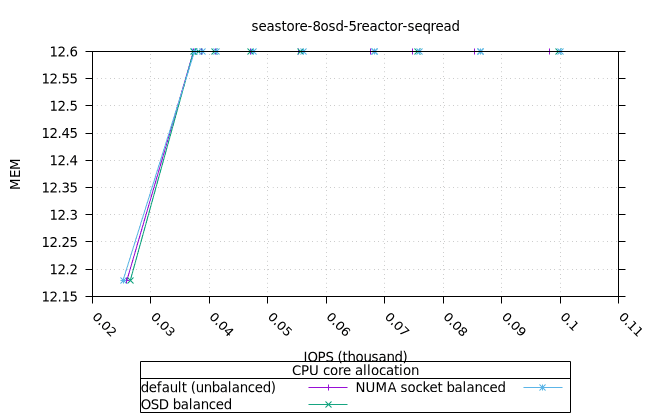

• It is a good sign to see a constant memory utilisation for the OSD process across all the iodepths. The NUMA socket strategy has only a .6% higher than the other strategies, which is not significant to cause concern.

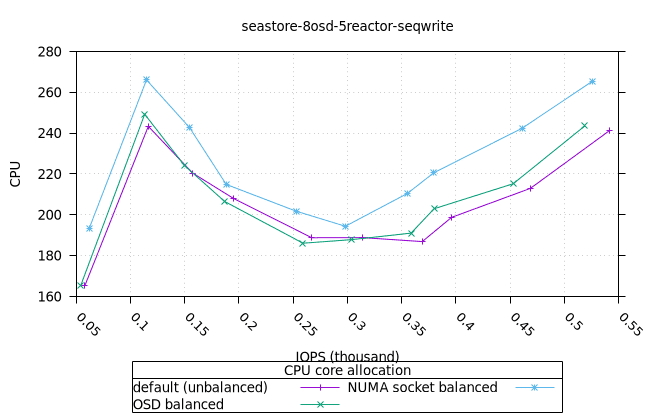

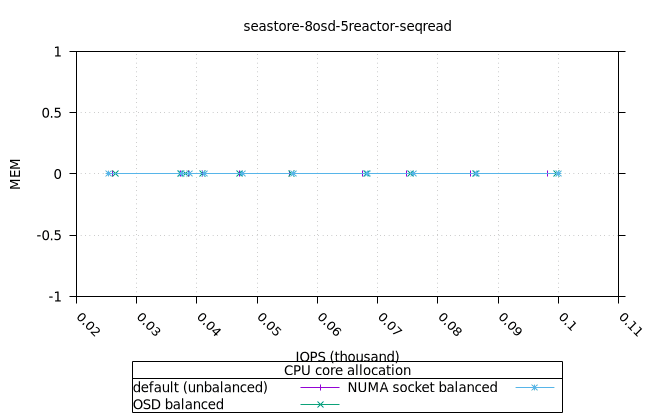

OSD CPU	OSD MEM

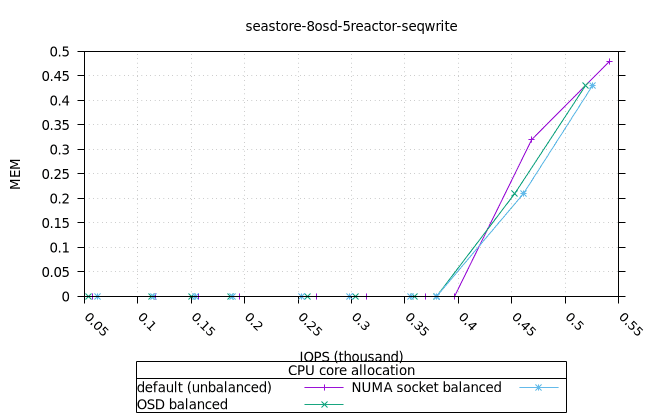

FIO CPU	FIO MEM
